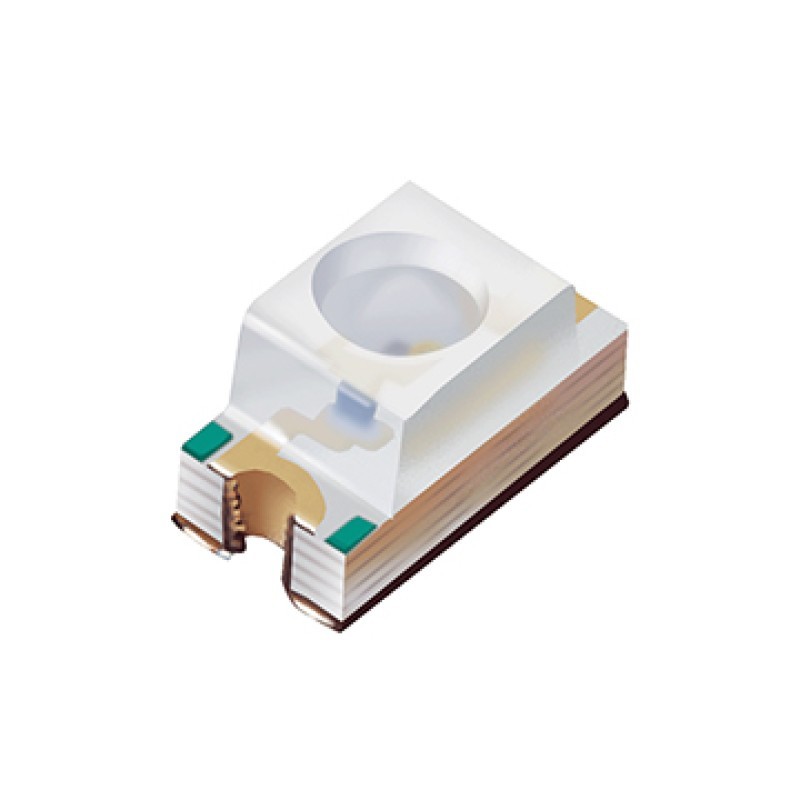

IR11-21C/TR8
$0.45
Tax excluded
Description
s: This part is an infrared emitting diode in miniature SMD package which is molded in a water clear plastic With flat top view lens. The device is spectrally matched with silicon photodiode and phototransistor.
Features
- Small double-end package High reliability Low forward voltage Good spectral matching to Si photodetector Package in 8mm tape on 7” diameter reel Pb free The product itself will remain within RoHS compliant version.
Applications
- Pcb Mounted Infrared Sensor Infrared Emitting For Miniature Light Barrier Floppy Disk Drive Optoelectronic Switch Smoke Detector
IR11-21C/TR8
- Lens Color
- Water Clear
- Forward Current
- 20mA
- Forward Voltage
- 1.2V
- Maximum Voltage
- 1.5V
- Pulsed Forward Current
- 1000mA
- Beam Angle
- 100°
- Package
- 1206
- Mounting
- SMD
- Operating Temperature
- -25°C to 85°C
- Storage Temperature
- -40°C to 100°C
- Thickness
- 1.5mm
- Peak Wavelength
- 940nm
- Radiant Intensity
- 0.5 mW/sr
