IR16-213C/L510/TR8

$0.14
Tax excluded

Description

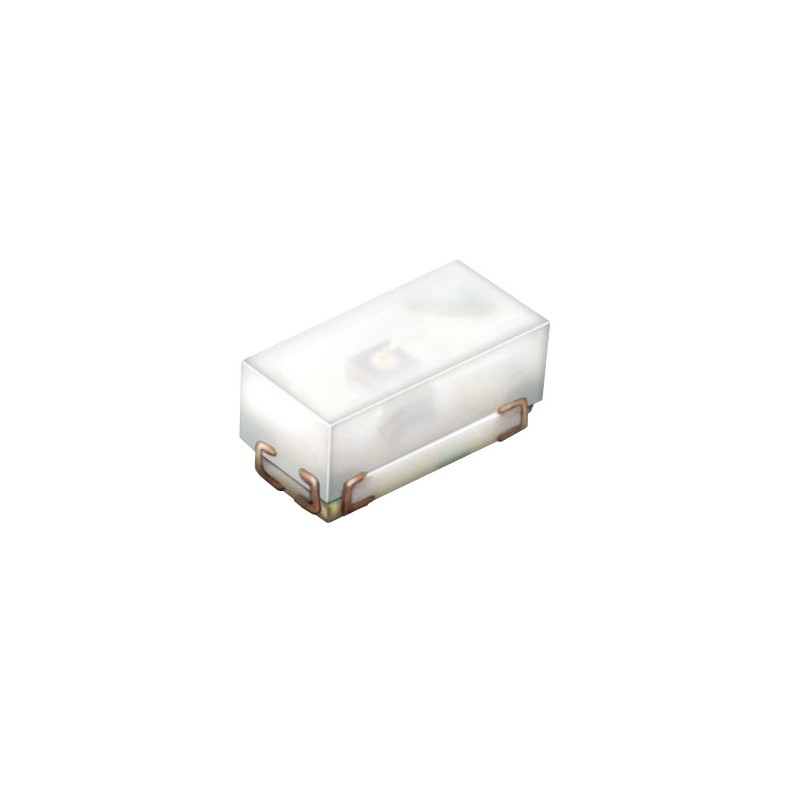

IR16-213C/L510/TR8 is an infrared emitting diode in miniature SMD package which is molded in a water clear epoxy. The device is spectrally matched with silicon photodiode and phototransistor.

Features

  • High reliability. Small double end package
  • Compatible with infrared and vapor phase reflow solder process. Pb free. The product itself will remain within RoHS compliant version. Compliance with EU REACH. Compliance Halogen Free (Br <900 ppm ,Cl <900 ppm , Br+Cl < 1500 ppm).

Applications

  • Pcb Mounted Infrared Sensor. Infrared Remote Control Units With High Power Requirement. Scanner. Infrared Applied System.
IR16-213C/L510/TR8
Lens Color
Water Clear
Forward Current
20mA
Forward Voltage
1.9V
Maximum Voltage
1.9V
Beam Angle
120°
Package
402
Mounting
SMD
Operating Temperature
-40°C to 100°C
Storage Temperature
-40°C to 100°C
Thickness
0.45mm
Peak Wavelength
940nm
Radiant Intensity
0.5 mW/sr
