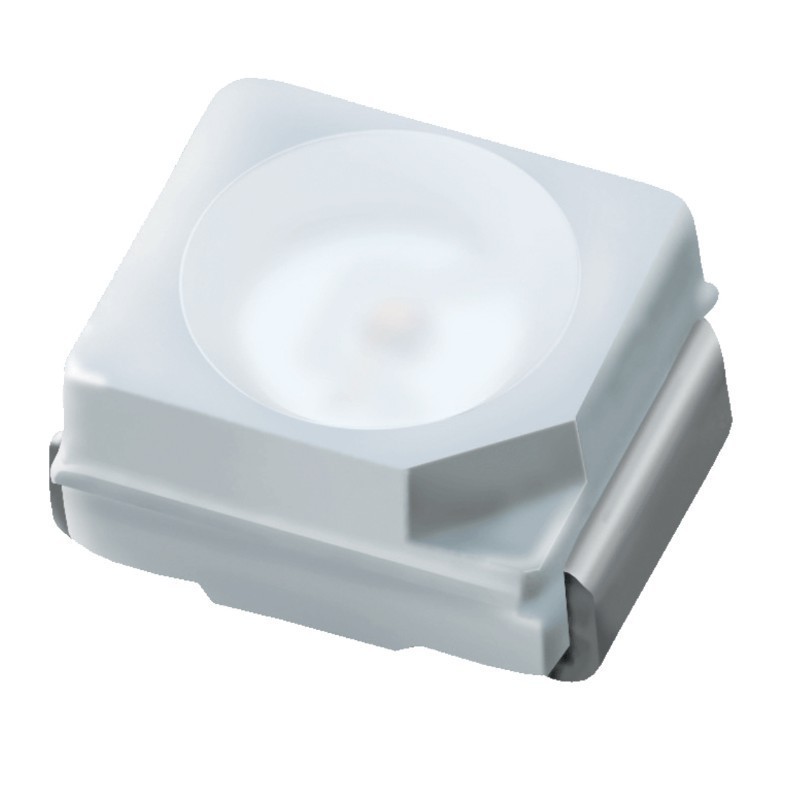

HIR67-21C/L289/TR8
$1.50
Tax excluded
Description
EVERLIGHT’s infrared emitting diode (HIR67-21C/L289/TR8(WW)) is a high intensity diode. Due to the package design ,the LED has wide viewing angle. The device is spectrally matched with phototransistor, photodiode and infrared receiver module.
Features
- Low forward voltage.
- View angle 125°
- Small package
- Wide viewing angle
- Pb free
- The product itself will remain within RoHS compliant version.
Applications
- Sensor
HIR67-21C/L289/TR8
- Lens Color
- Water Clear
- Forward Current
- 20mA
- Forward Voltage
- 1.7V
- Maximum Voltage
- 1.7V
- Beam Angle
- 120°
- Package
- 3528
- Mounting
- SMD
- Operating Temperature
- -25°C to 85°C
- Storage Temperature
- -40°C to 100°C
- Thickness
- 1.8mm
- Peak Wavelength
- 850nm
- Radiant Intensity
- 2 mW/sr
