EAISS3010A3

$0.45
Tax excluded

Description

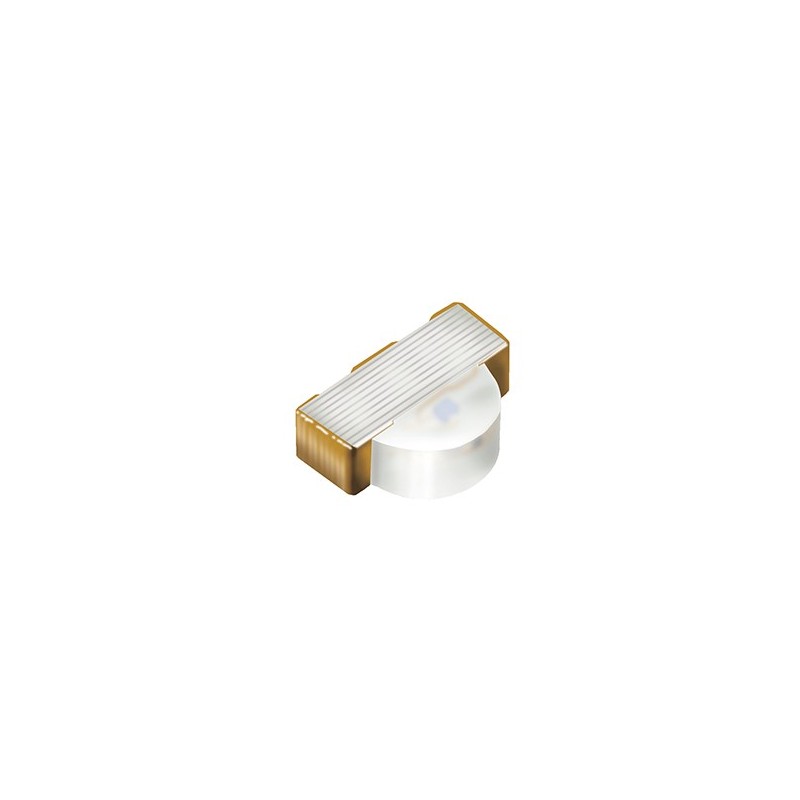

This part is an infrared emitting diode in miniature SMD package which is molded in a water clear plastic with right angle lens. The device is spectrally matched with silicon photodiode and phototransistor.

Features

  • Package in 8mm tape on 7” diameter reel
  • Small double-end package
  • High reliability
  • Low forward voltage
  • Good spectral matching to Si photo detector
  • Pb free
  • The product itself will remain within RoHS compliant version.

Applications

  • Pcb Mounted Infrared Sensor
  • Infrared Emitting For Miniature Light Barrier
  • Floppy Disk Drive
  • Optoelectronic Switch
  • Smoke Detector
EAISS3010A3
Forward Current
20mA
Forward Voltage
1.45V
Maximum Voltage
1.65V
Pulsed Forward Current
1000mA
Beam Angle
145°
Package
1208
Mounting
SMD
Operating Temperature
-25°C to 85°C
Storage Temperature
-40°C to 100°C
Thickness
2mm
Peak Wavelength
850nm
Radiant Intensity
0.7 mW/sr
