HIR16-213C/L423/TR8

$0.14
Tax excluded

Description

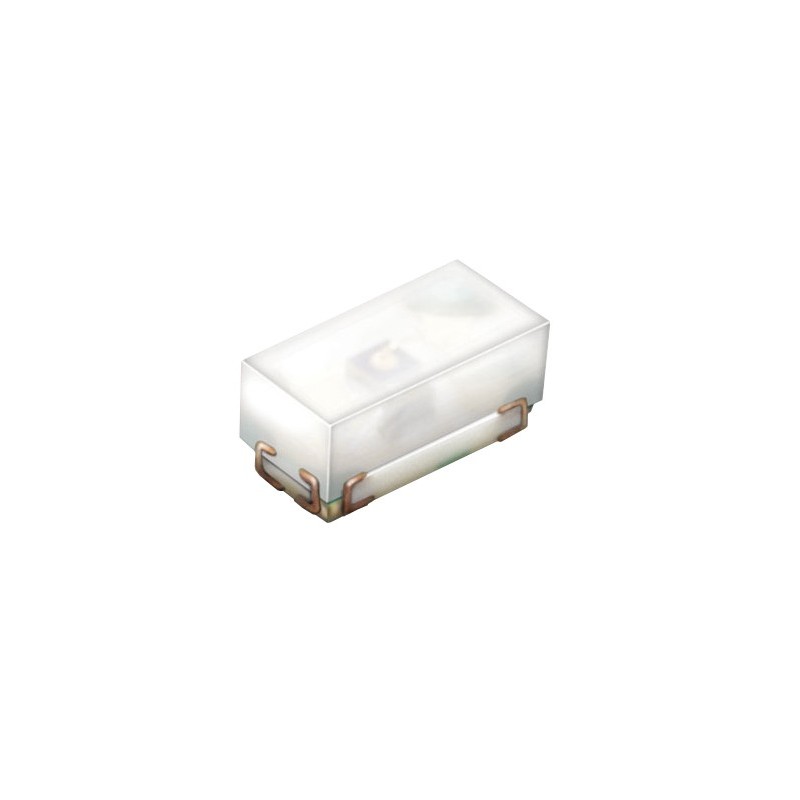

HIR16-213C/L423/TR8 is an infrared emitting diode in miniature SMD package which is molded in a water clear epoxy. The device is spectrally matched with silicon photodiode and phototransistor.

Features

  • High reliability. Small double end package. Package in 8mm tape on 7” diameter reel. Compatible with infrared and vapor phase reflow solder process. Pb free. The product itself will remain within RoHS compliant version. Compliance with EU REACH. Compliance Halogen Free .(Br <900 ppm ,Cl <900 ppm , Br+Cl < 1500 ppm)

Applications

  • Pcb Mounted Infrared Sensor Infrared Remote Control Units With High P Ower Requirement Scanner Infrared Applied System
HIR16-213C/L423/TR8
Lens Color
Water Clear
Forward Current
20mA
Forward Voltage
1.65/2V
Maximum Voltage
1.65V
Beam Angle
145°
Package
402
Mounting
SMD
Operating Temperature
-40°C to 100°C
Storage Temperature
-40°C to 100°C
Thickness
0.45mm
Peak Wavelength
850nm
Radiant Intensity
0.5 mW/sr
