SIR234

$0.45
Tax excluded

Description

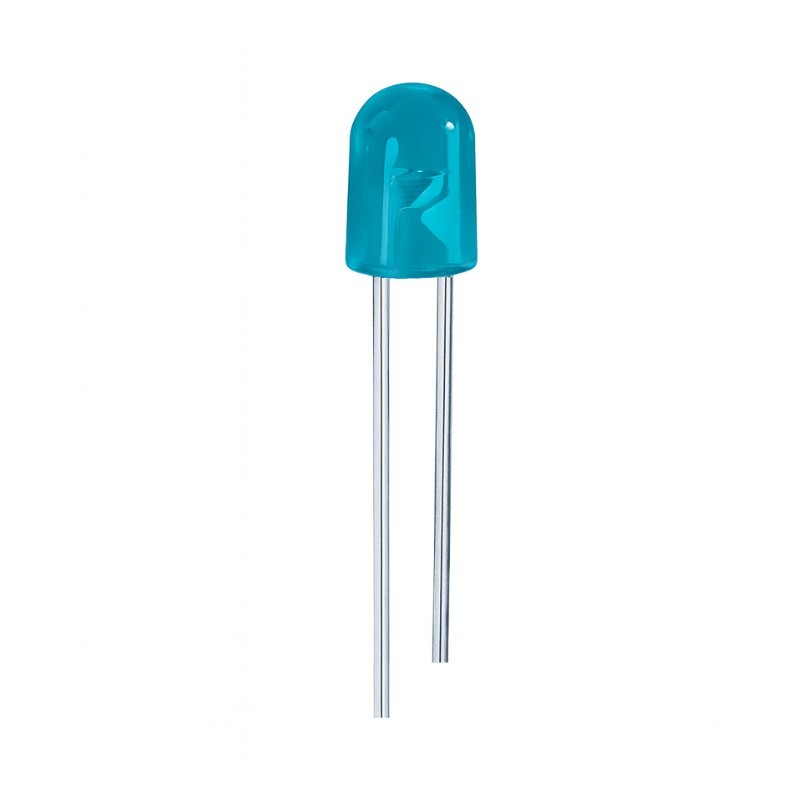

Everlight Americas Infrared Emitting Diode is a high intensity diode ; molded in a blue transparent plastic package. The device is spectrally matched with phototransistor ; photodiode and infrared receiver module.

Features

  • High reliability
  • High radiant intensity
  • Peak wavelength λp=875nm
  • 2.54mm Lead spacing
  • Low forward voltage
  • Pb Free

Applications

  • Optoelectronic Switch
  • Infrared Applied System
  • Smoke Detector
SIR234
Lens Color
Blue
Forward Current
20mA
Forward Voltage
1.65V
Maximum Voltage
1.6V
Pulsed Forward Current
1000mA
Beam Angle
30°
Package
3mm Round Lamp
Mounting
Through Hole
Operating Temperature
-40°C to 85°C
Storage Temperature
-40°C to 100°C
Peak Wavelength
875nm
Radiant Intensity
5.6 mW/sr
