HIR-C19D-1O90/L708-P01/TR

$4.60
Tax excluded

Description

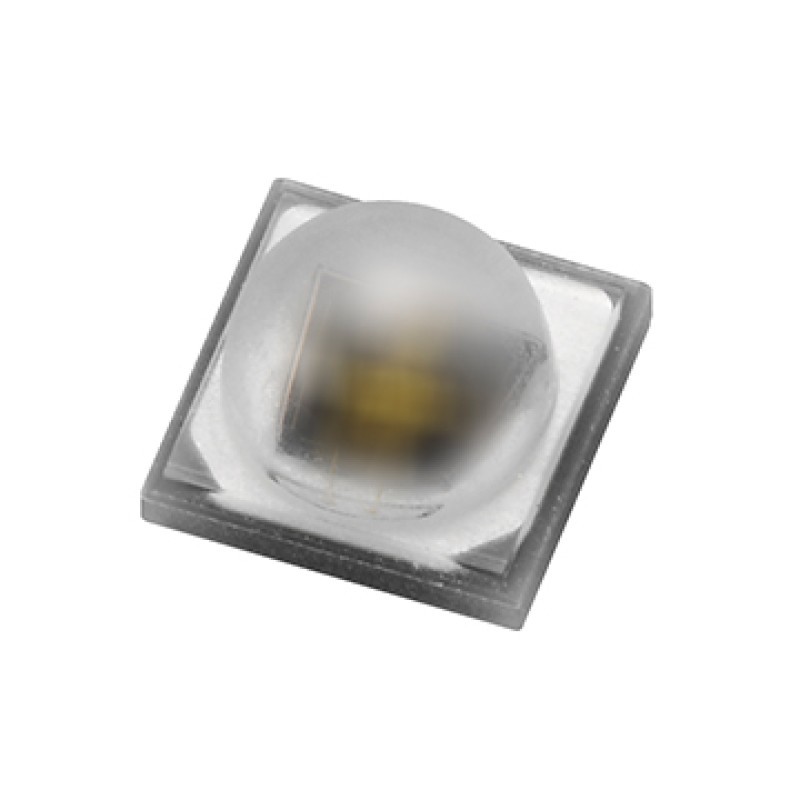

HIR-C19D-1O90/L708-P01/TR series is an infrared emitting diode in miniature SMD package which is molded in a water clear silicone with spherical top view lens. The device is spectrally matched with silicon photo diode, Phototransistor.

Features

  •  Small package with high efficiency  Peak wavelength λp =850 nm  Soldering methods: SMT  Thermal resistance (junction to lead): 23 K/W.  Pb free  Compliance with EU REACH  Compliance Halogen Free(Br < 900ppm, Cl < 900ppm, Br+Cl < 1500ppm)  The product itself will remain within RoHS compliant version.

Applications

  • Ccd Camera.
  • Infrared Applied System.
HIR-C19D-1O90/L708-P01/TR
Lens Color
Water Clear
Forward Current
350mA
Forward Voltage
1.7/2.10/2.30V
Maximum Voltage
1.7V
Beam Angle
90°
Package
3535
Mounting
SMD
Operating Temperature
-40°C to 100°C
Storage Temperature
-40°C to 100°C
Thickness
2.36mm
Peak Wavelength
850nm
Radiant Intensity
110 mW/sr
