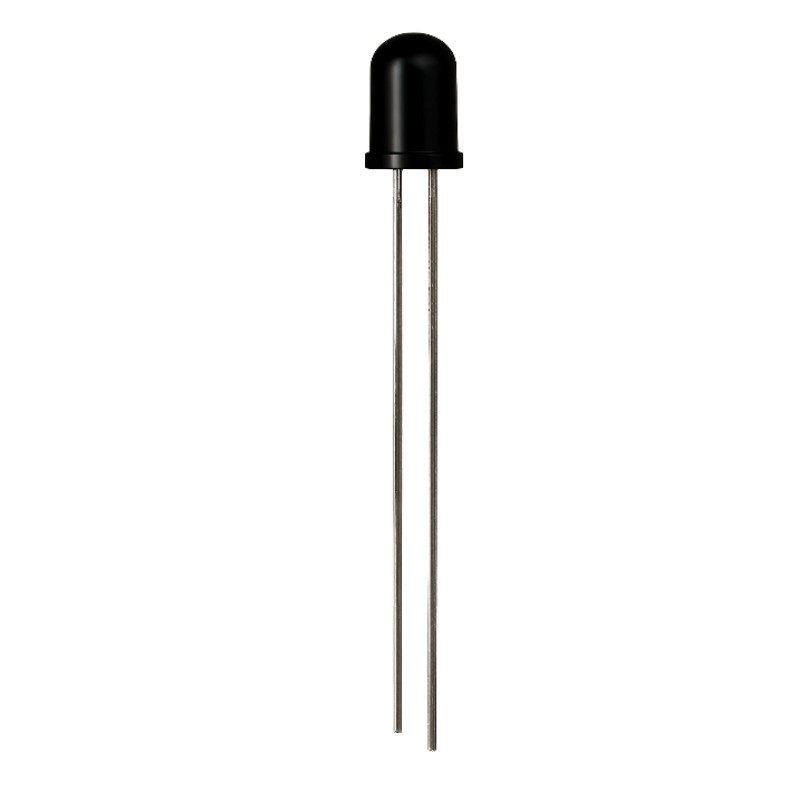

HIR7393B/L289
$0.27
Tax excluded
Description
EVERLIGHT’s Infrared Emitting Diode (HIR7393B/L289) is a high intensity diode , molded in a black plastic package. The device is spectrally matched with phototransistor , photodiode and infrared receiver module.
Features
- High reliability
- High radiant intensity
- Peak wavelength λp=850nm
- 2.54mm Lead spacing
- Low forward voltage
- Pb Free
- This product itself will remain within RoHS compliant version.
Applications
- Infrared Applied System
HIR7393B/L289
- Lens Color
- Black
- Forward Current
- 20mA
- Forward Voltage
- 1.6V
- Maximum Voltage
- 1.6V
- Pulsed Forward Current
- 1000mA
- Beam Angle
- 50°
- Package
- 5mm Round Lamp
- Mounting
- Through Hole
- Operating Temperature
- -40°C to 85°C
- Storage Temperature
- -40°C to 100°C
- Peak Wavelength
- 850nm
- Radiant Intensity
- 7.8 mW/sr
