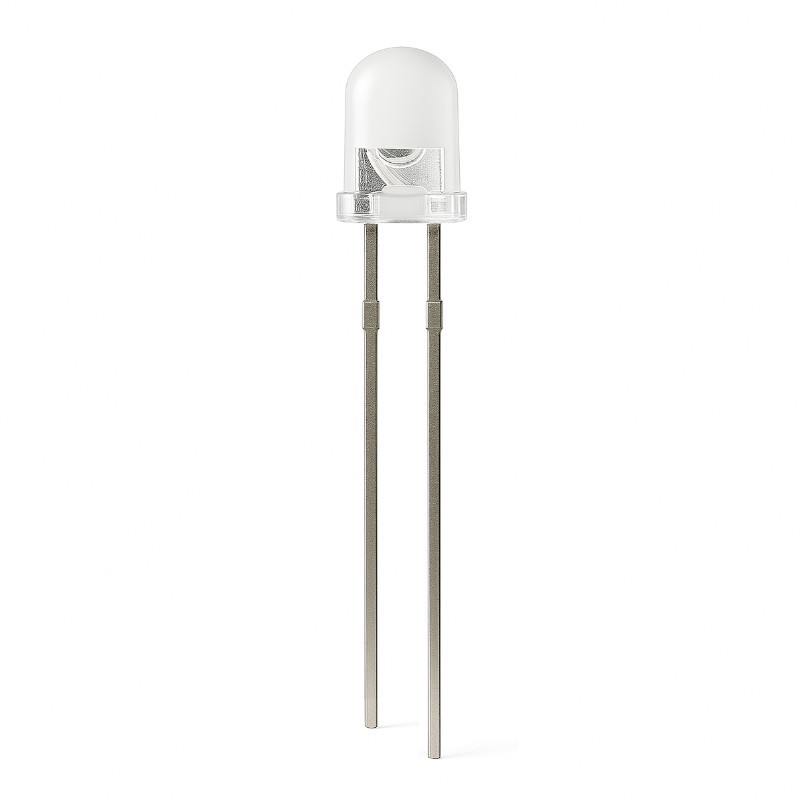

IR333C-A
$0.45
Tax excluded
Description
EVERLIGHT’s Infrared Emitting Diode IR333C-A is a high intensity diode , molded in a Water clear transparent plastic package. The device is spectrally matched with phototransistor , photodiode and infrared receiver module.
Features
- High reliability
- High radiant intensity
- Peak wavelength λp=940nm
- 2.54mm Lead spacing
- Low forward voltage
- Pb Free
- This product itself will remain within RoHS compliant version.
Applications
- Infrared Applied System
IR333C-A
- Lens Color
- Water Clear
- Forward Current
- 20mA
- Forward Voltage
- 1.2V
- Maximum Voltage
- 1.5V
- Pulsed Forward Current
- 1000mA
- Beam Angle
- 20°
- Package
- 5mm Round Lamp
- Mounting
- Through Hole
- Operating Temperature
- -40°C to 85°C
- Storage Temperature
- -40°C to 100°C
- Peak Wavelength
- 940nm
- Radiant Intensity
- 7.8 mW/sr
