IR323

$0.45
Tax excluded

Description

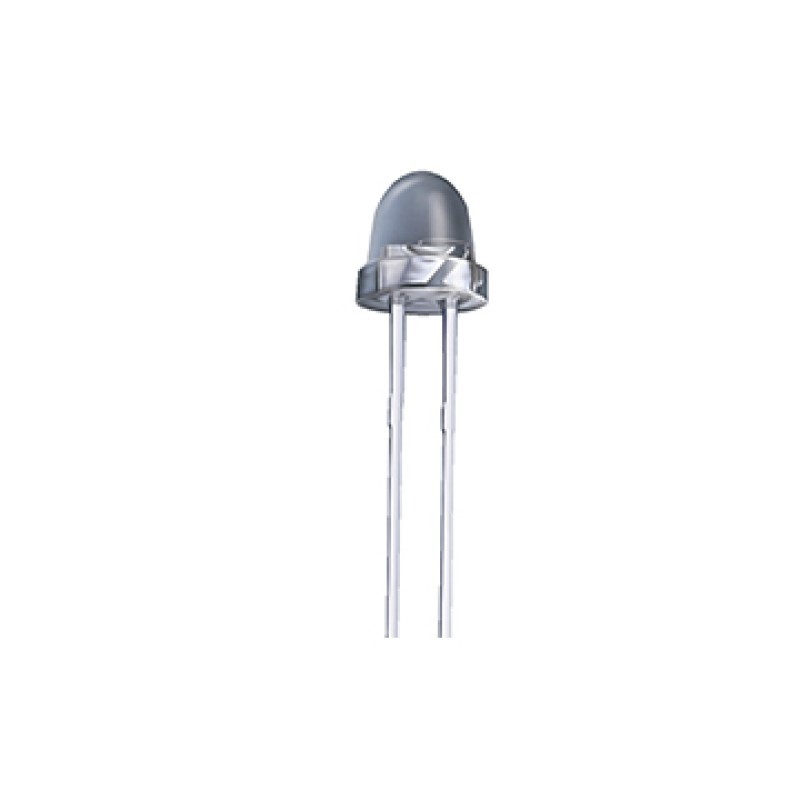

EVERLIGHT’s Infrared Emitting Diode (IR323) is a high intensity diode , molded in a blue transparent plastic package. The device is spectrally matched with phototransistor , photodiode and infrared receiver module.

Features

  • High reliability High radiant intensity Peak wavelength λp=940nm 2.54mm Lead spacing Low forward voltage Pb Free This product itself will remain within RoHS compliant version.

Applications

  • Infrared Applied System
IR323
Lens Color
Blue
Forward Current
20mA
Forward Voltage
1.5V
Maximum Voltage
1.5V
Pulsed Forward Current
1000mA
Beam Angle
30°
Package
5mm Round Lamp
Mounting
Through Hole
Operating Temperature
-40°C to 85°C
Storage Temperature
-40°C to 100°C
Peak Wavelength
940nm
Radiant Intensity
4 mW/sr
