HIR323C

$0.45
Tax excluded

Description

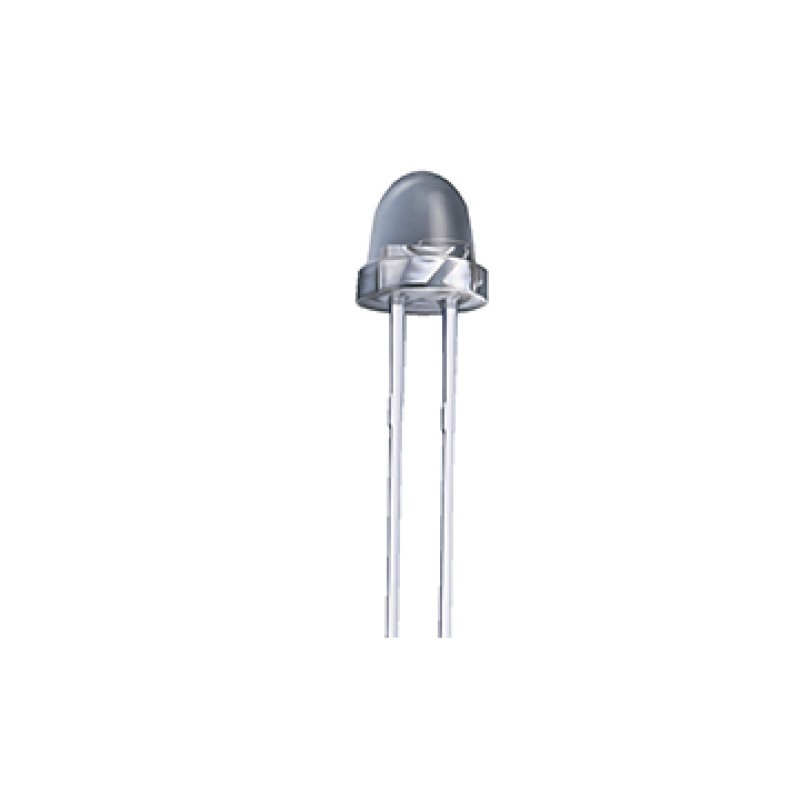

EVERLIGHT’s Infrared Emitting Diode (HIR323C) is a high intensity diode , molded in a water clear plastic package. The device is spectrally matched with phototransistor , photodiode and infrared receiver module.

Features

  • High reliability
  • High radiant intensity
  • Peak wavelength λp=850nm
  • 2.54mm Lead spacing
  • Low forward voltage
  • Pb Free
  • This product itself will remain within RoHS compliant version.

Applications

  • Infrared Applied System
HIR323C
Lens Color
Water Clear
Forward Current
20mA
Forward Voltage
1.65V
Maximum Voltage
1.65V
Pulsed Forward Current
1000mA
Beam Angle
15°
Package
5mm Round Lamp
Mounting
Through Hole
Operating Temperature
-40°C to 85°C
Storage Temperature
-40°C to 100°C
Peak Wavelength
850nm
Radiant Intensity
15 mW/sr
