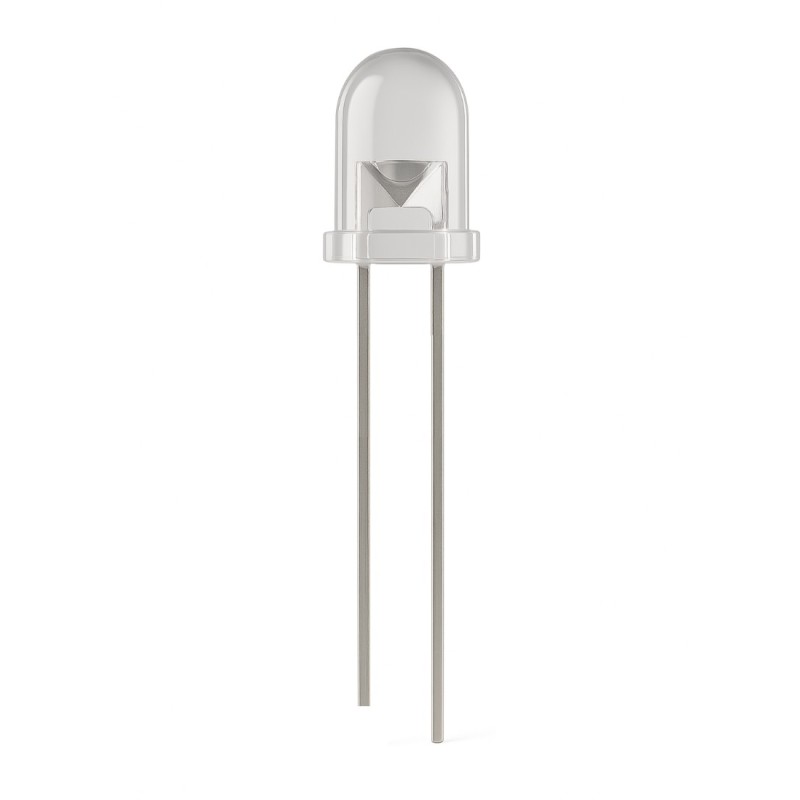

IR204C-A

$0.45
Tax excluded

Description

Everlight Americas infrared emitting is a high intensity diode; molded in a water clear plastic package. The device is spectrally matched with phototransistor; photodiode and infrared receive module. .

Features

  • High reliability
  • 2.54mm lead spacing
  • Low forward voltage
  • Good spectral matching to Si photodetector
  • High radiant intensity
  • Pb free
  • The product itself will remain within RoHS compliant version.

Applications

  • Infrared Applied System
IR204C-A
Lens Color
Water Clear
Forward Current
20mA
Forward Voltage
1.2V
Maximum Voltage
1.5V
Pulsed Forward Current
1000mA
Beam Angle
40°
Package
3mm Round Lamp
Mounting
Through Hole
Operating Temperature
-40°C to 85°C
Storage Temperature
-40°C to 100°C
Peak Wavelength
940nm
Radiant Intensity
4 mW/sr
