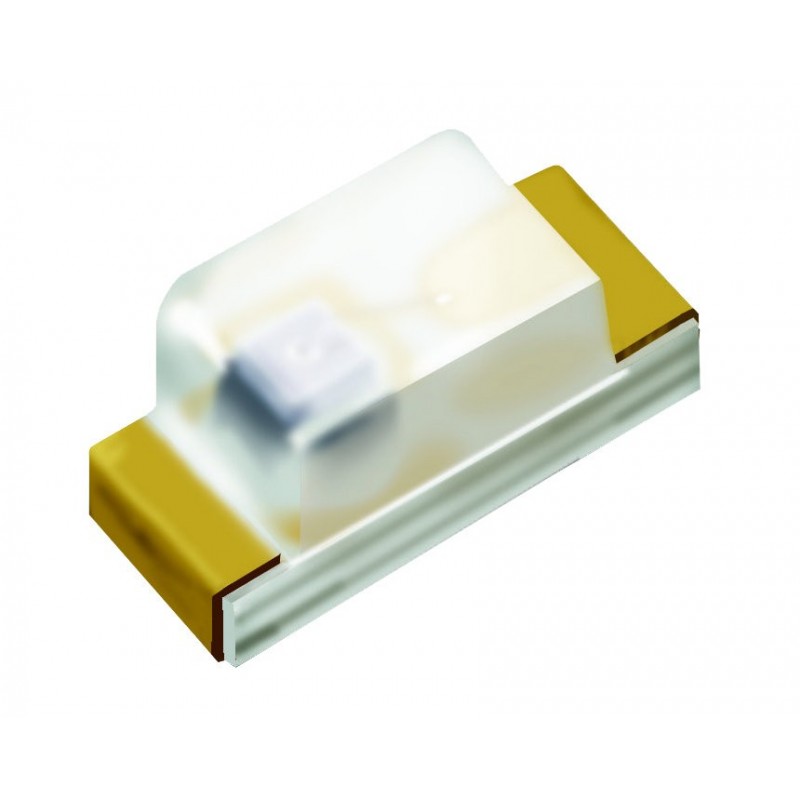

Part Number: IR19-21C/TR8
IR Emitter - SMD
Descriptions:
IR19-21C/TR8 is an infrared emitting diode in miniature SMD package which is
molded in a water clear plastic with flat top view lens.
The device is spectrally matched with silicon photodiode and phototransistor.
Features:
Small double-end package
Low forward voltage
Good spectral matching to Si photo detector
Package in 8mm tape on 7” diameter reel
Pb free
The product itself will remain within RoHS compliant version.
Compliance with EU REACH
Applications:
PCB mounted infrared sensor
Infrared emitting for miniature light barrier
Floppy disk drive
Optoelectronic switch
Smoke detector
| Peak Wavelength | 940nm |
| Packaging | Tape & Reel |
| Package | 1608 |
| Orientation | Top View |
| Off State Lens Color | Water Clear |
| Test Current | 20mA |
| Mounting | SMD |
| Min. Storage Temp. | -40C |
| Min. Radiant Intensity | 0.2mW/sr |
| Min. Operating Temp. | -25C |
| Typ. Forward Voltage | 1.2V |
| Width | 0.8mm |
| Viewing Angle | 150 deg. |
| Type | Emitter |
| Typ. Radiant Intensity | 0.7mW/sr |
| Thickness | 0.8mm |
| Length | 1.6mm |
| Max. Forward Voltage | 1.5V |
| Max. Storage Temp. | 85C |
| Max. Pulsed Current | 1000mA |
| Max. Operating Temp. | 85C |
