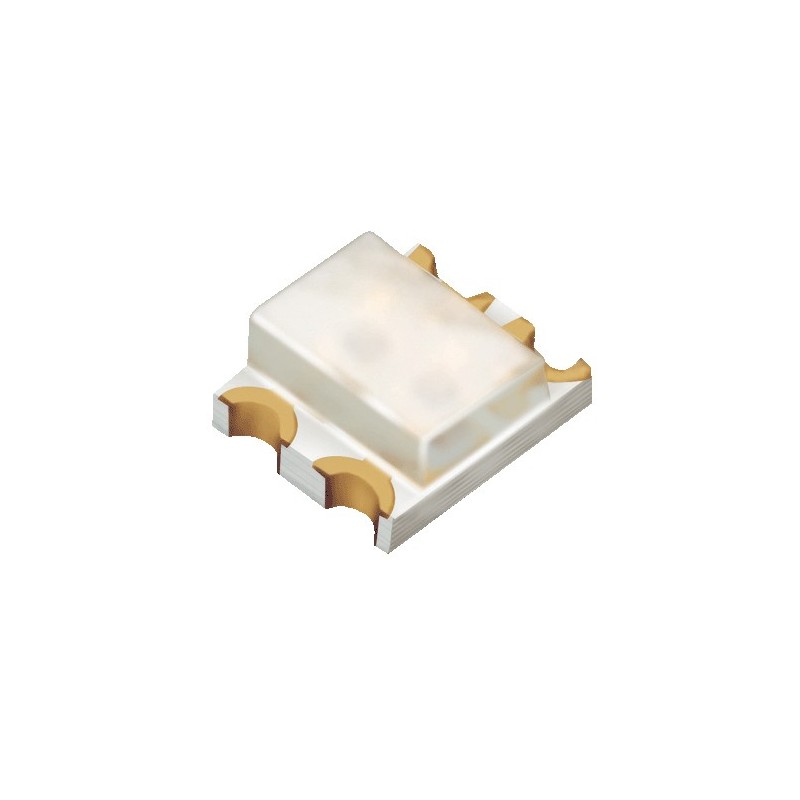

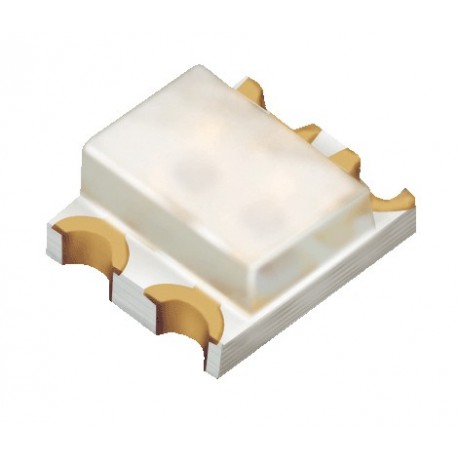

Part Number: 19-223/R6T1D-C30/2T
Orange
Bi-Color PCB Top View SMD LED Red-White
Features
Packaged in 8mm tape on 7〞diameter reel.
Compatible with automatic placement equipment.
Compatible with infrared and vapor phase reflow solder process.
Multi -color type.
Pb-free.
The product itself will remain within RoHS compliant version.
Compliance with EU REACH.
Compliance Halogen Free .(Br <900 ppm ,Cl <900 ppm , Br+Cl < 1500 ppm).
Description
This SMD LED is much smaller than lead frame type components, thus enable smaller board
size, higher packing density, reduced storage space and allowing for smaller equipment to be
obtained. Its lightweight makes them ideal for miniature applications. etc.
Applications
Backlighting in dashboard and switch.
Telecommunication: indicator and backlighting in telephone and fax.
Flat backlight for LCD, switch and symbol.
General use.
| Peak Wavelength | 632nm |
| Packaging | Tape & Reel |
| Package | 1615 |
| Orientation | Top View |
| Off State Lens Color | Water Clear |
| Test Current | 5mA |
| Mounting | SMD |
| Min. Storage Temp. | -40C |
| Min. Operating Temp. | -40C |
| Min. Forward Voltage | 1.55/2.70V |
| Width | 1.5mm |
| Viewing Angle | 140 deg. |
| Type | Low-Mid Power |
| Min. Flux | 18/45mcd |
| Max. Forward current | 25/10mA |
| Max. Flux | 45/112mcd |
| Max. Dominant Wavelength | 633.5nm |
| Length | 1.6mm |
| Max. Forward Voltage | 2.15/3.30V |
| Min. Dominant Wavelength | 621.5nm |
| Max. Storage Temp. | 90C |
| Max. Pulsed Current | 60/100mA |
| Max. Operating Temp. | 85C |
