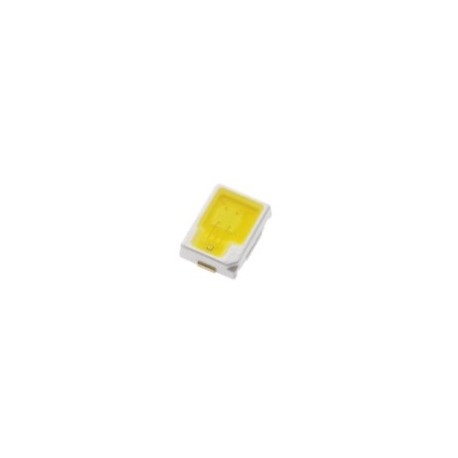

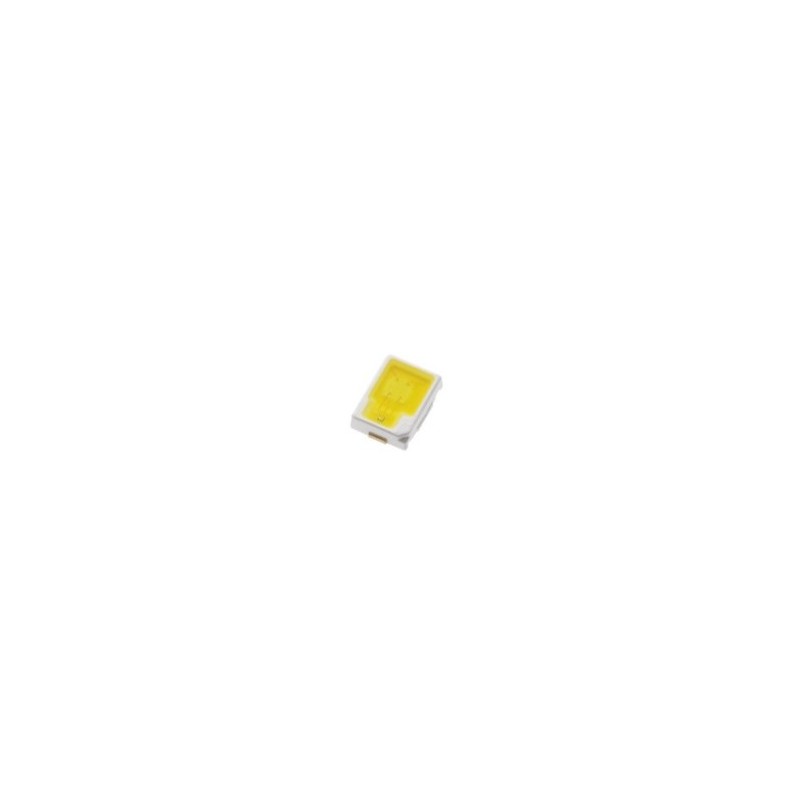

Part Number: 2820-C02001M-56B64DF6F92737-2T-AM


SMD package

More details

On Backorder

    Features

    • Package：SMD package
    • Color Temperature range：5500K~6680K
    • Typ. Luminous Flux：75lm @ 200mA
    • Viewing angle：120o
    • ESD：8KV
    • MSL：2
    • Qualified AEC-Q102
    • Compliance with RoHS and REACH
    • Sulphur robustness
    • Compliance Halogen Free .(Br <900 ppm ,CI <900 ppm , Br+Cl < 1500 ppm)

    Applications

    • Automotive exterior lighting
    • Turning Light

    Ray Files 3D Files
    PackagingTape & Reel
    Package2820
    Test Current200mA
    MountingSMD
    Min. Storage Temp.-40C
    Min. Operating Temp.-40C
    Min. Forward Voltage2.75V
    Typ. Forward Voltage3V
    Width1.6mm
    Viewing Angle120 deg.
    Min. Flux60lm
    Typ. Flux75lm
    Height0.6
    Max. Forward current300mA
    Max. Flux100lm
    Length2.9mm
    Max. Forward Voltage3.75V
    Max. Storage Temp.125C
    Max. Operating Temp.125C
