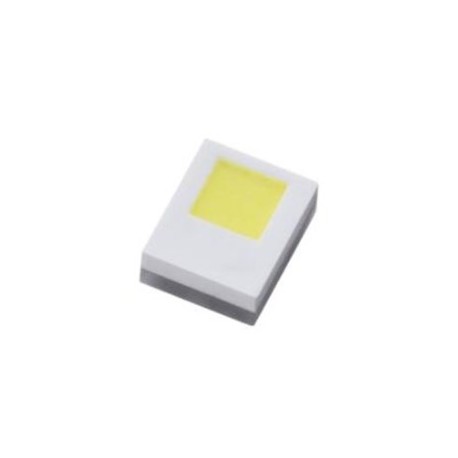

New ALFS1G-PA10001H-AM View larger
  • XI3030-C01501M-AM
  • ALFS1BD-C010001L-AM
  • ALFS1G-PA10001H-AM

Part Number: ALFS1G-PA10001H-YAYBB5B71A1C-1T-AM


White

On Backorder

    Description:
    ALFS

    Features
    • Package：SMD ceramic package
    • Typ. Luminous Flux：200 lm @1000mA
    • Viewing angle：120o
    • ESD：up to 8KV
    • MSL：2
    • Qualifications：According to AEC-Q102
    • Sulfur robustness：Class A1
    • The product itself will remain within RoHS compliant version.
    • Compliance with EU REACH.
    • Compliance Halogen Free .(Br <900 ppm ,CI <900 ppm , Br+Cl < 1500 ppm).

    Applications
    • Automotive Exterior Lighting
    • Signalling

    Ray Files 3D Files
    PackagingTape & Reel
    Package2016
    Test Current1000mA
    MountingSMD
    Min. Storage Temp.-40C
    Min. Operating Temp.-40C
    Min. Forward Voltage2.90V
    Typ. Forward Voltage3.30V
    Width1.64mm
    Viewing Angle120 deg.
    TypeLow-Mid Power
    Min. Flux180lm
    Typ. Flux200lm
    Thickness0.83mm
    Max. Forward current1500mA
    Max. Flux260lm
    Length2.04mm
    Max. Forward Voltage3.80V
    ColorsWhite
    Max. Storage Temp.125C
    Max. Pulsed Current5700mA
    Max. Operating Temp.125C
