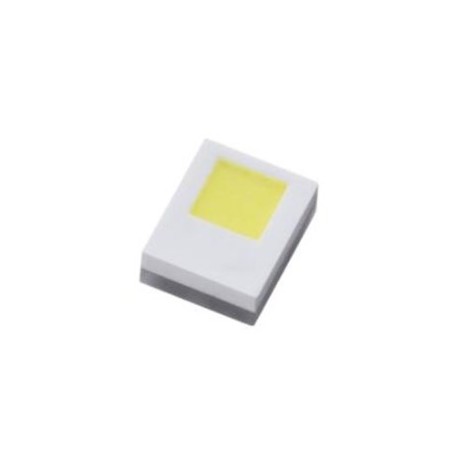

New ALFS1G-PA10001H-AM View larger
  • XI3030-C01501M-AM
  • ALFS1BD-C010001L-AM
  • ALFS1G-PA10001H-AM

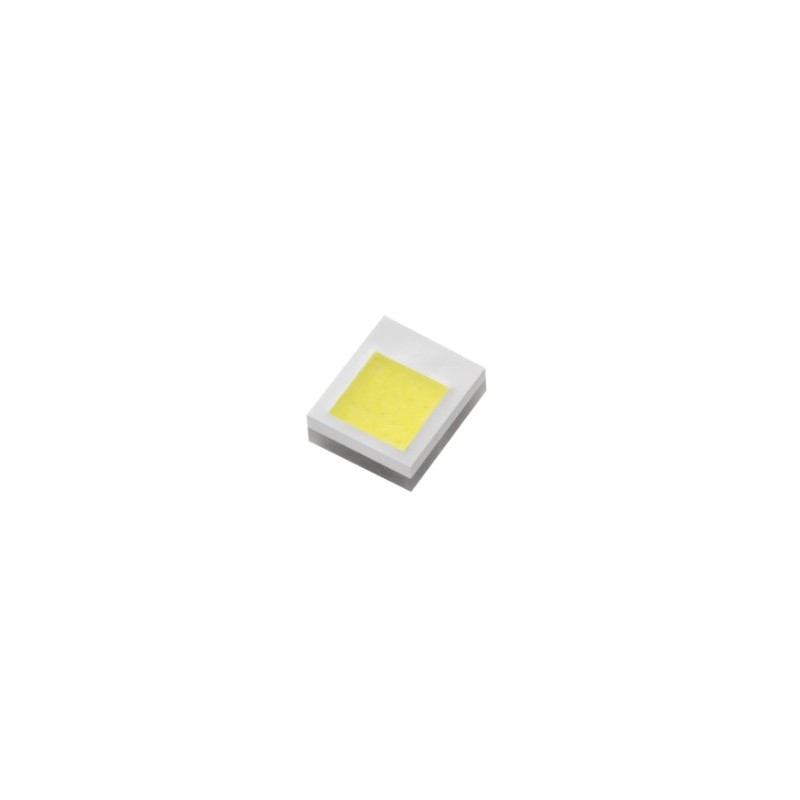

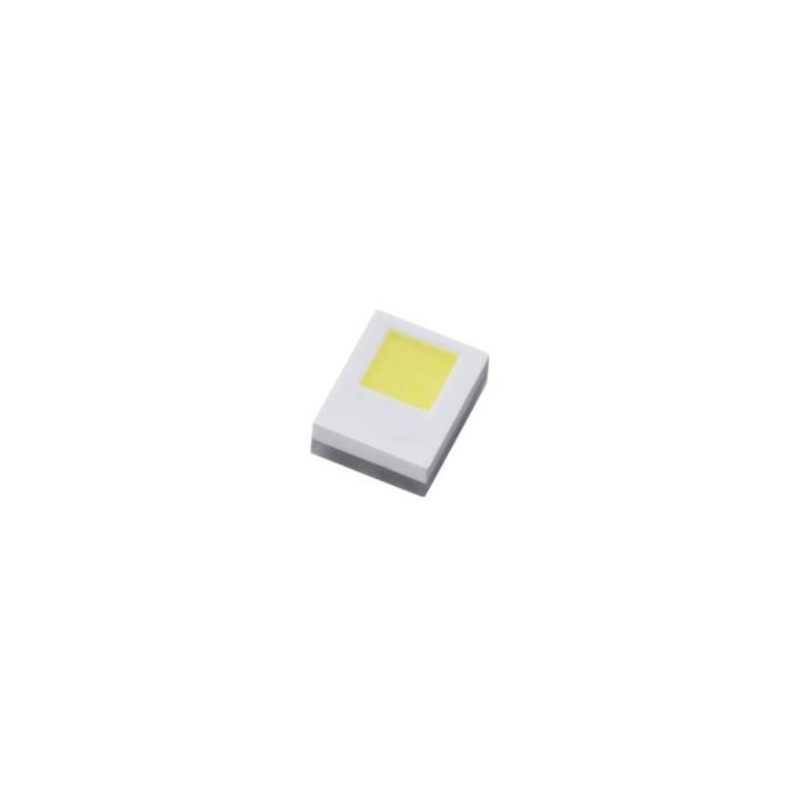

Part Number: ALFS2G-C010001H-60C64DD7E12A2C-1T-AM


White

On Backorder

    Description:
    ALFS Series

    Features

    • Package：SMD ceramic package
    • Typ. Color Temperate: 5850K
    • Typ. Luminous Flux：790 lm @1000mA
    • Viewing angle：120o
    • ESD：up to 8KV
    • MSL：2
    • Qualifications：According to AEC-Q102
    • Sulfur robustness: Class A1
    • The product itself will remain within RoHS compliant version.
    • Compliance with EU REACH.
    • Compliance Halogen Free .(Br <900 ppm ,CI <900 ppm , Br+Cl < 1500 ppm).

    Applications

    • Automotive Exterior Lighting
    • Headlamp
    • Daylight running light (DRL)
    • Fog lamp
    Ray Files 3D Files
    PackagingTape & Reel
    Package3735
    MountingSMD
    Min. Storage Temp.-40C
    Min. Operating Temp.-40C
    Min. Forward Voltage5.8V
    Typ. Forward Voltage6.5V
    Viewing Angle120 deg.
    TypeLow-Mid Power
    Min. Flux700lm
    Typ. Flux790lm
    Max. Forward current1500mA
    Max. Flux860lm
    Max. Forward Voltage7.6V
    ColorsWhite
    Max. Storage Temp.125C
    Max. Operating Temp.125C
