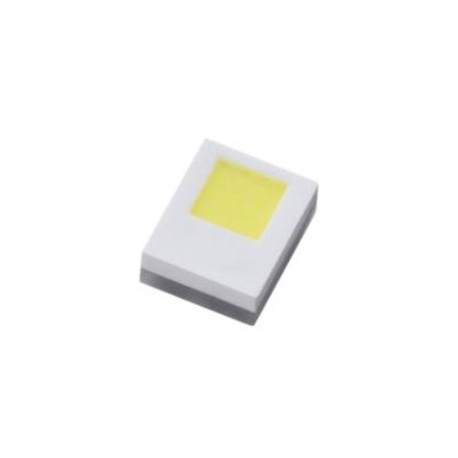

Part Number: ALFS1E-C07001H61M63MB8B101A1C-1T-AM


White

On Backorder

    Description:
    ALFS Series

    Features

    • Package：SMD ceramic package
    • Typ. Luminous Flux：270 lm @700mA
    • Viewing angle：120o
    • ESD：up to 8KV
    • MSL：2
    • Qualifications：According to AEC-Q102
    • Sulfur robustness：Class A1
    • The product itself will remain within RoHS compliant version.
    • Compliance with EU REACH.
    •  Compliance Halogen Free .(Br <900 ppm ,CI <900 ppm , Br+Cl < 1500 ppm).

    Applications

    • Automotive Exterior Lighting
    • Headlamp
    • Daylight running light (DRL)
    • Fog lamp
    Ray Files 3D Files
    PackagingTape & Reel
    Package3735
    MountingSMD
    Min. Storage Temp.-40C
    Min. Operating Temp.-40C
    Min. Forward Voltage2.9V
    Typ. Forward Voltage3.2V
    Viewing Angle120 deg.
    TypeLow-Mid Power
    Min. Flux240lm
    Typ. Flux270lm
    Thickness0.75mm
    Max. Forward current800mA
    Max. Flux300lm
    Max. Forward Voltage3.8V
    ColorsWhite
    Max. Storage Temp.125C
    Max. Operating Temp.125C
