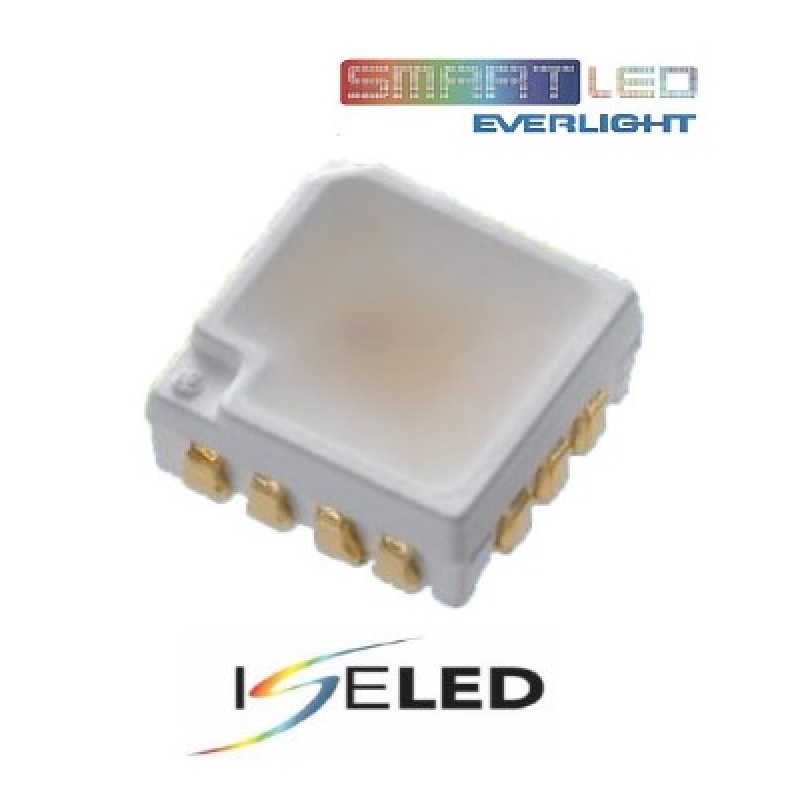

EL3534-RGBISE0391L-AM

Features

• SMARTLED package with RGB color complies with ISELED protocol
• Package size: 3.5 x 3.4 x 1.35 mm
• Color: Red 620nm, Green 530nm, Blue 468nm
• Typical Luminous Intensity W: 1400mcd @D65
• Calibrated to D65: CIE x = 0.3127, CIE y = 0.3290
• Viewing angle: 120 o
• ESD(HBM): up to 2KV
• MSL: 2
• The product itself will remain within RoHS compliant version
• Compliance with EU REACH
• Compliance Halogen Free (Br<900ppm, Cl<900ppm, Br+Cl<1500ppm)
• LED: AEC-Q102 Qualified and Driving IC: AEC-Q100 Qualified
• Sulfur robustness : Class A0
