67-11-GHC-Y0U1V2A6E-2T8-AM

$0.75
Tax excluded

Features

  • RoHS compliant.

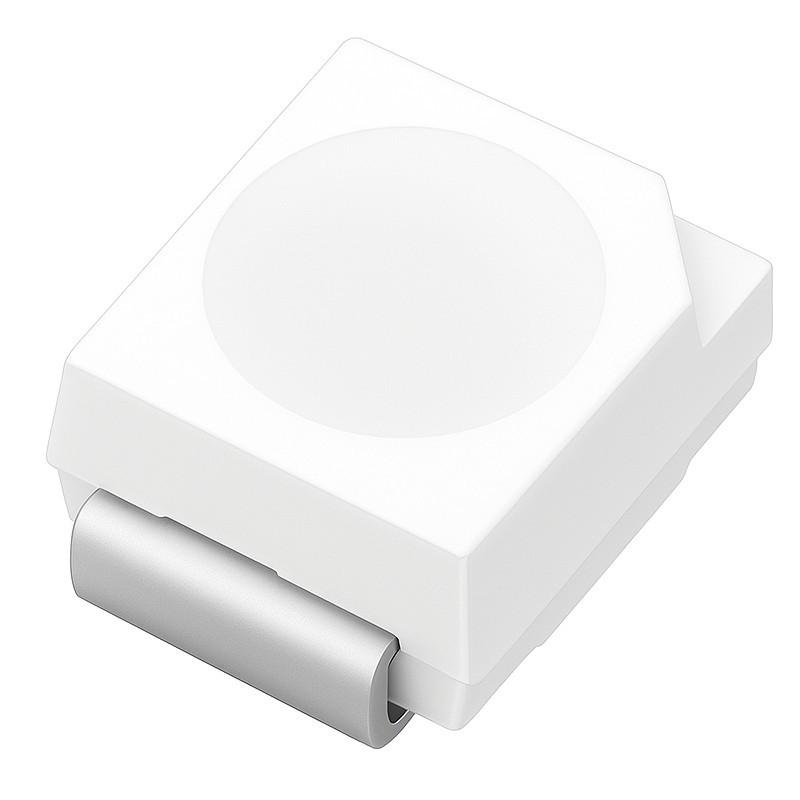

  • P-LCC-2 package.
  • Colorless clear resin.
  • Wide viewing angle 120o.
  • Inner reflector and white package.
  • Brightness: 450 to 1120 mcd at 20mA.
  • Qualification according to AEC-Q101 rev C
  • Precondition: Bases on JEDEC J-STD 020 Level 3.
  • Useable in severe lead free processes with automotive reflow profile (IR reflow or wave soldering)

Applications

  • Automotive Backlighting Or Indicator: Dashboard, Switch, Audio And Video Equipments…Etc.
  • Backlight: Lcd, Switches, Symbol, Mobile Phone And Illuminated Advertising.
  • Display For Indoor And Outdoor Application.
  • Ideal For Coupling Into Light Guides.
  • Substitution Of Traditional Light.
  • Optical Indicator.
  • General Applications.
67-11-GHC-Y0U1V2A6E-2T8-AM
Color
Green
Green; Luminous Intensity
Luminous Intensity
450mcd
Forward Current
20mA
Maximum Voltage
3.8V
Beam Angle
120°
Package
3528
