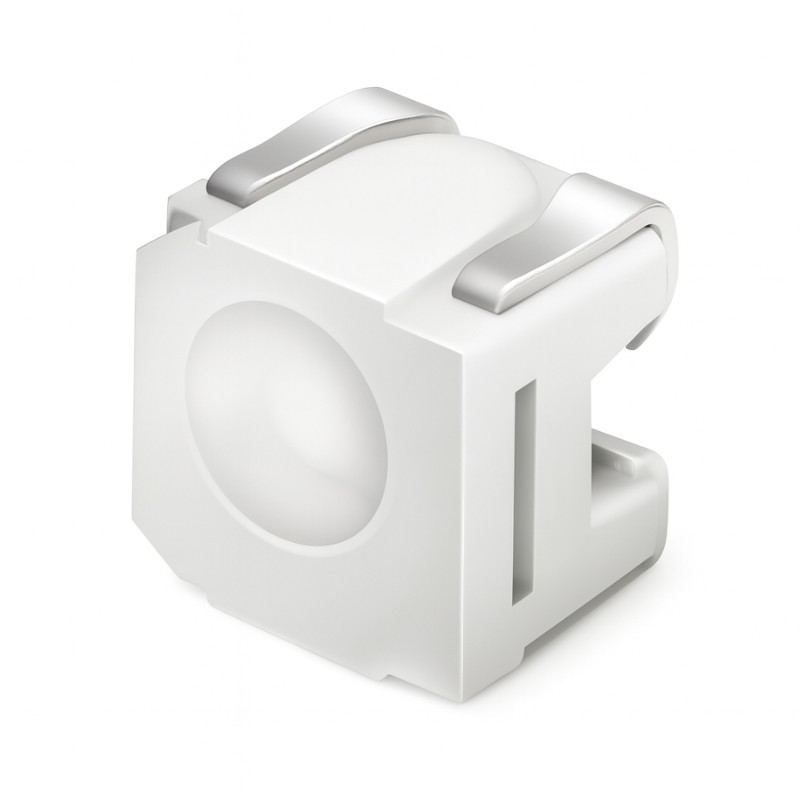

57-11-UB0200H-6375S2U12737-2T-AM
$0.45
Tax excluded
Description
This series benefit from a package design with wide viewing angle which is optimized for light coupling by inter reflector. This feature makes this series ideal for light pipe application. The low current requirement makes this device ideal for portable equipment or any other application where power is at a premium.
Features
- Package：Blue LED with PLCC 4 package Emitted Color：Blue Typ. Luminance Intensity：355 mcd @ 20mA Typ. Luminous Flux：1 lm @ 20mA Viewing angle：120o ESD; up to 8KV Qualifications; According to AEC-Q101 Compliance with RoHS and REACH
Applications
- Automotive Interior Lighting
- Dashboard
- Switch
- Reading Lamp
- Audio And Car Infortainment….Etc Backlight: Lcd
- Switches
- Symbol
- Mobile Phone And Illuminated Advertising. Optical Ind...
57-11-UB0200H-6375S2U12737-2T-AM
- Color
- Blue
- Luminous Intensity
- 224mcd
- Forward Current
- 20mA
- Forward Voltage
- 3.75V
- Maximum Voltage
- 3.75V
- Pulsed Forward Current
- 112mA
- Beam Angle
- 120°
- Package
- 4040
- Mounting
- SMD
- Operating Temperature
- -40°C to 110°C
- Storage Temperature
- -40°C to 110°C
- Thickness
- 3.55mm
