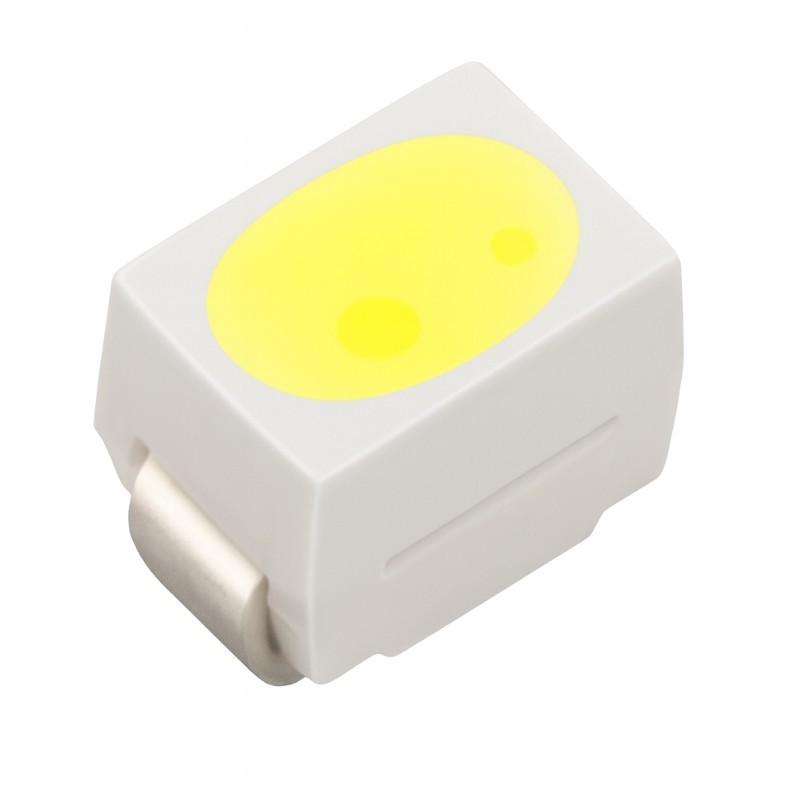

65-11-C70100M-PM0FK0T1U22737-2T-AM
$1.20
Tax excluded
Description
This series benefit from a package design with wide viewing angle which is optimized for light coupling by inter reflector. This feature makes this series ideal for light pipe application. The low current requirement makes this device ideal for portable equipment or any other application where power is at a premium.
Features
- Package：Cool White LED with PLCC 2 package Emitted Color：Cool White Typ. Luminance Intensity：450 mcd @ 10mA Typ. Luminous Flux：1 lm @ 10mA Viewing angle：120o ESD; up to 8KV Qualifications; According to AEC-Q101 Compliance with RoHS and REACH
Applications
- Automotive Interior Lighting
- Dashboard
- Switch
- Reading Lamp
- Audio And Car Infortainment….Etc Backlight: Lcd
- Switches
- Symbol
- Mobile Phone And Illuminated Advertising....
65-11-C70100M-PM0FK0T1U22737-2T-AM
- Color
- White
White; Lens Color - Lens Color
- White
- Luminous Intensity
- 280mcd
- Forward Current
- 10mA
- Forward Voltage
- 3.75V
- Maximum Voltage
- 3.75V
- Beam Angle
- 120°
- Package
- 2214
- Mounting
- SMD
- Operating Temperature
- -40°C to 110°C
- Storage Temperature
- -40°C to 110°C
- Thickness
- 1.35mm
