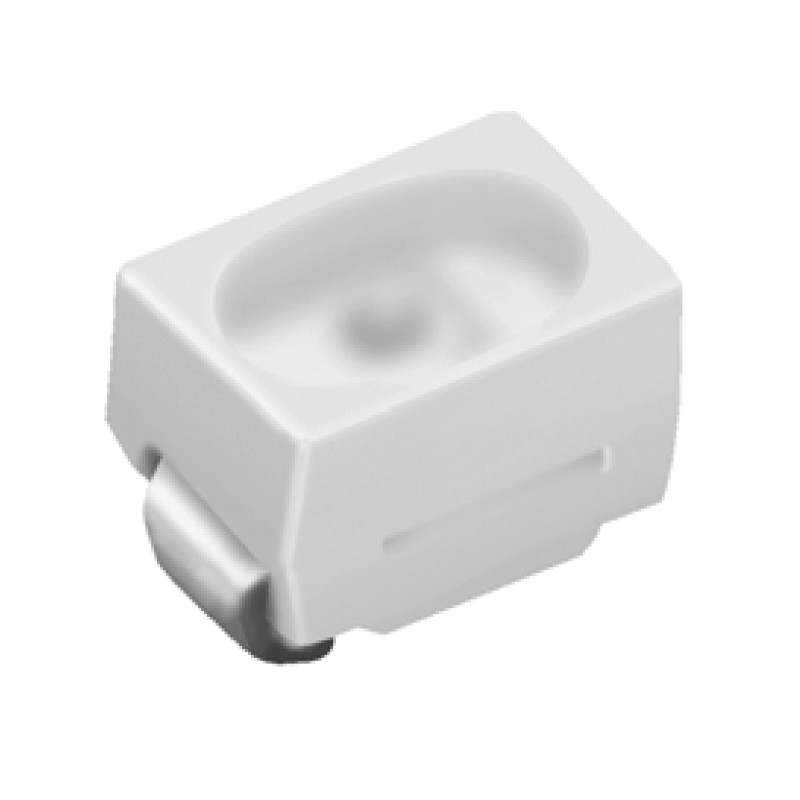

65-11-GBC-Y0V1AAN0E-2T8-AM

65-11-GBC-Y0V1AAN0E-2T8-AM

$0.75

Tax excluded

Description
Product Details

Features

P-LCC-2 package
Color diffused resin
Wide viewing angle 120 o
Inner reflector and white package
Qualification according to AEC-Q101
Brightness: 710 to 1400 mcd at 20mA
recondition: Bases on JEDEC J-STD 020D Level 3
Automotive reflow profile (IR reflow or wave soldering)
The product itself will remain within RoHS compliant version
Compliance with EU REACH
Compliance Halogen Free (Br<900ppm, Cl<900ppm, Br+Cl<1500ppm)

Applications

Automotive Backlighting Or Indicator: Dashboard, Switch, Audio And Video Equipments…Etc.
Backlight: Lcd, Switches, Symbol, Mobile Phone And Illuminated Advertising.
Display For Indoor And Outdoor Application.
Ideal For Coupling Into Light Guides.
Substitution Of Traditional Light.
Optical Indicator.

Reference 65-11-GBC-Y0V1AAN0E-2T8-AM

Color: Green
Green; Luminous Intensity
Luminous Intensity: 710mcd
Forward Current: 20mA
Maximum Voltage: 3.7V
Beam Angle: 120°
Package: 2214
