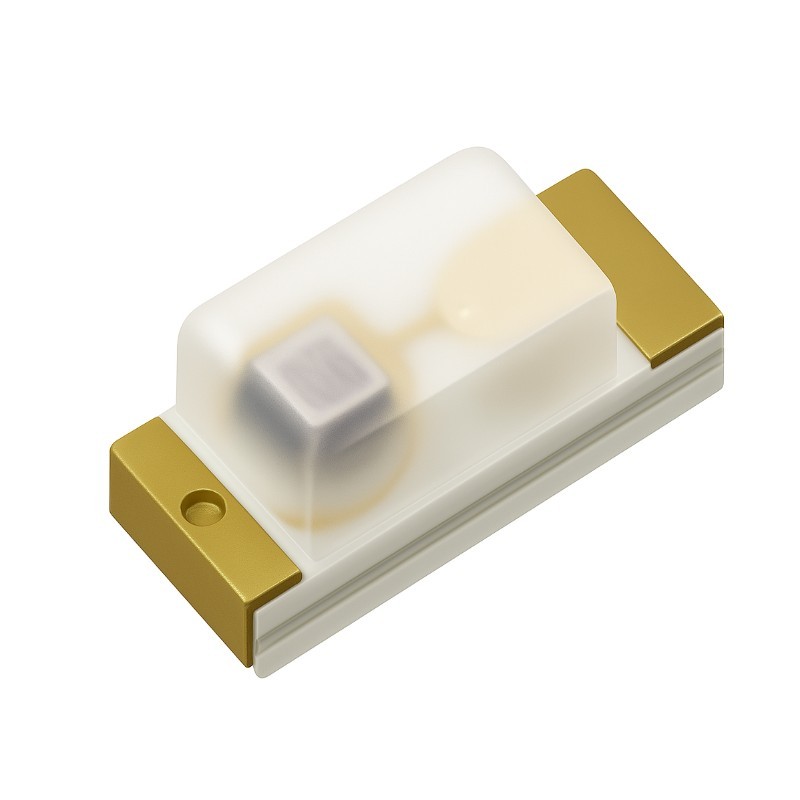

19-213-S3SC-B0S1T1B0E-3T-AM

$0.10
Tax excluded

Description

This SMD LED is much smaller than lead frame type components; thus enable smaller board ize; higher packing density; reduced storage space and finally smaller equipment to be obtained. Its lightweight makes it ideal for miniature applications. etc.

Features

  • RoHS compliant
  • Chip LED package.
  • Colorless clear resin.
  • Wide viewing angle 120°.
  • Brightness: 112 to 280 mcd at 20mA.
  • Qualification according to AEC-Q101.
  • Precondition: Bases on JEDEC J-STD 020 Level 3.
  • Automotive reflow profile (IR reflow or wave soldering)
  • Compliance with EU REACH.
  • Compliance Halogen Free .(Br <900 ppm ;Cl <900 ppm ; Br+Cl < 1500 ppm).

Applications

  • Automotive Backlighting Or Indicator: Dashboard; Switch; Audio And Video Equipments…Etc.
19-213-S3SC-B0S1T1B0E-3T-AM
Color
Reddish Orange
Reddish Orange; Lens Color
Lens Color
Water Clear
Luminous Intensity
180mcd
Forward Current
20mA
Forward Voltage
2.35V
Maximum Voltage
2.35V
Pulsed Forward Current
100mA
Beam Angle
120°
Package
603
Mounting
SMD
Operating Temperature
-40°C to 85°C
Storage Temperature
-40°C to 90°C
Thickness
0.6mm
