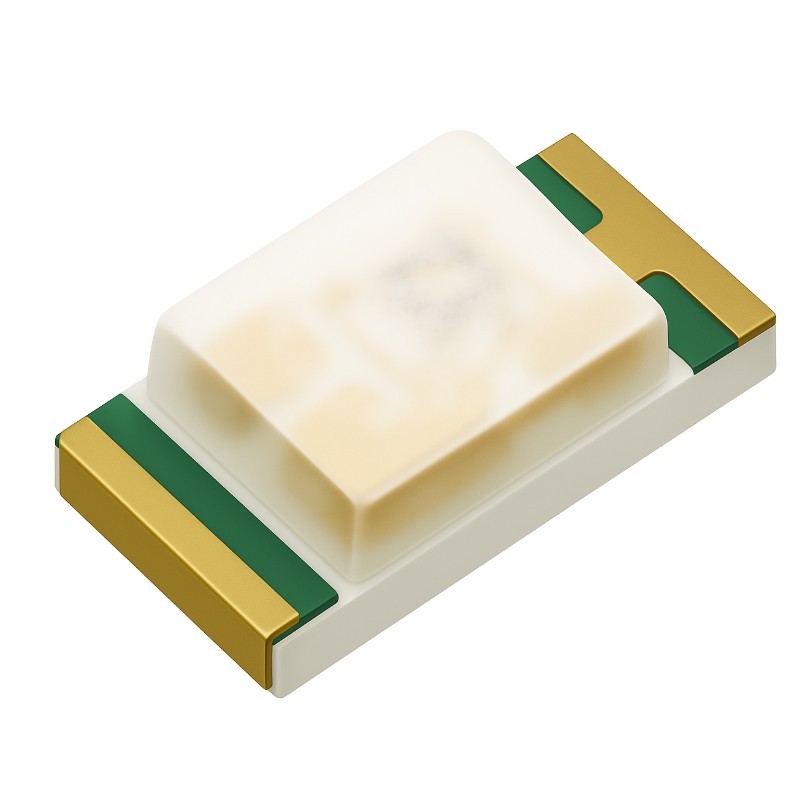

19-217-S2C-A0L2M2L0B-3T-AM

$0.06
Tax excluded

Description

The SMD LED is much smaller than lead frame type components; thus enable smaller board ize; higher packing density; reduced storage space and finally smaller equipment to be obtained. Besides; lightweight makes them ideal for miniature applications. etc.

Features

  • RoHS compliant
  • Chip LED package.
  • Colorless clear resin.
  • Wide viewing angle 120°
  • Brightness:14.00 to 28.00 mcd at 5mA.
  • Qualification according to AEC-Q101.
  • Precondition: Bases on JEDEC J-STD 020 Level 3.
  • Automotive reflow profile (IR reflow or wave soldering)
  • Compliance with EU REACH
  • Compliance Halogen Free .(Br <900 ppm ,Cl <900 ppm , Br+Cl < 1500 ppm).

Applications

  • Automotive Backlighting Or Indicator: Dashboard, Switch, Audio And Video Equipments…Etc. <...
19-217-S2C-A0L2M2L0B-3T-AM
Color
Orange
Orange; Luminous Intensity
Luminous Intensity
14mcd
Forward Current
5mA
Maximum Voltage
2.3V
Beam Angle
120°
Package
603
