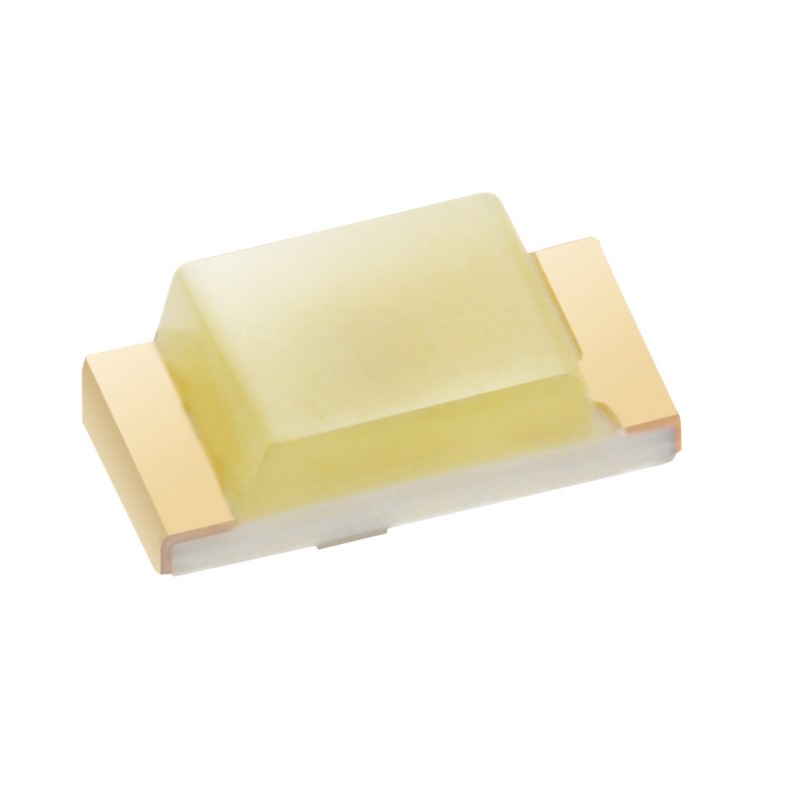

19-213-R7C-A0R1S2B0C-3T-AM

$0.08
Tax excluded

Description

The SMD LED is much smaller than lead frame type components; thus enable smaller board ize; higher packing density; reduced storage space and finally smaller equipment to be obtained. Besides; lightweight makes them ideal for miniature applications. etc.

Features

  • RoHS compliant
  • Chip LED package.
  • Colorless clear resin.
  • Wide viewing angle 120°.
  • Brightness: 112 to 280 mcd at 20mA.
  • Qualification according to AEC-Q101.
  • Precondition: Bases on JEDEC J-STD 020 Level 3.
  • Automotive reflow profile (IR reflow or wave soldering)
  • Compliance with EU REACH.
  • Compliance Halogen Free .(Br <900 ppm ;Cl <900 ppm ; Br+Cl < 1500 ppm).

Applications

  • Automotive Backlighting Or Indicator: Dashboard; Switch; Audio And Video Equipments…Et...
19-213-R7C-A0R1S2B0C-3T-AM
Color
Dark Red
Dark Red; Lens Color
Lens Color
Water Clear
Luminous Intensity
112mcd
Forward Current
10mA
Forward Voltage
2.35V
Maximum Voltage
2.35V
Pulsed Forward Current
60mA
Beam Angle
120°
Package
603
Mounting
SMD
Operating Temperature
-40°C to 85°C
Storage Temperature
-40°C to 90°C
Thickness
0.6mm
