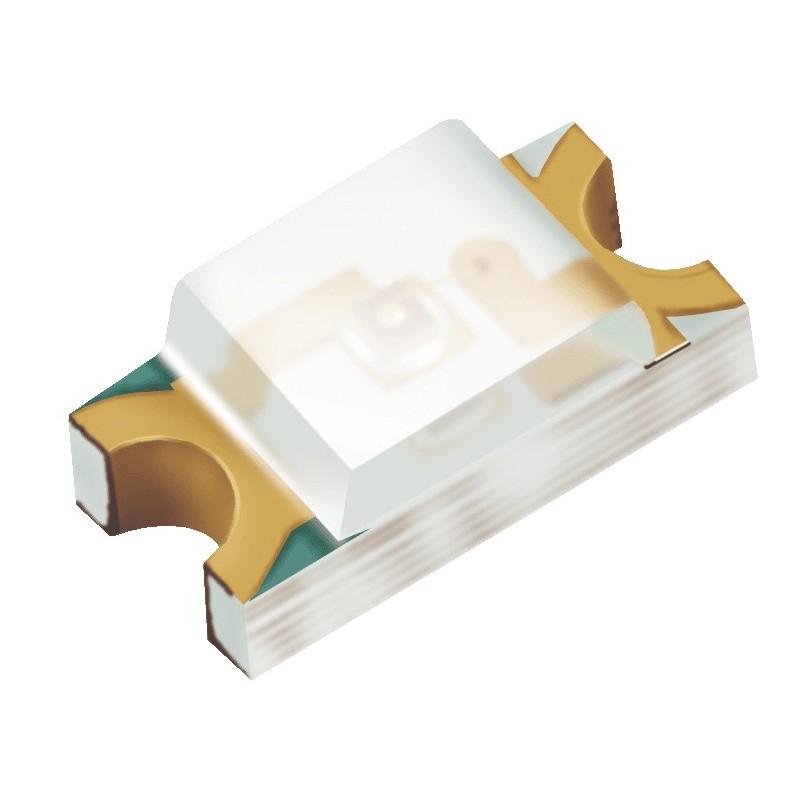

EAST3215YA4-AM

$0.30

Tax excluded

Description
Product Details

Description

The SMD LED is much smaller than lead frame type components; thus enable smaller board size; higher packing density; reduced storage space and finally smaller equipment to be obtained. Besides; lightweight makes them ideal for miniature applications. etc.

Features

RoHS compliant
Chip LED package.
Colorless clear resin.
Wide viewing angle 130°.
Brightness: 180 to 355 mcd at 20mA.
Qualification according to AEC-Q101.
Precondition: Bases on JEDEC J-STD 020 Level 3.
Automotive reflow profile (IR reflow or wave soldering).
Compliance with EU REACH.
Compliance Halogen Free .(Br <900 ppm ;Cl <900 ppm ; Br+Cl < 1500 ppm).

Applications

Automotive Backlighting Or Indicator: Dashboard; Switch; Audio And Video Equipments…...

Reference EAST3215YA4-AM

Color: Yellow
Yellow; Lens Color
Lens Color: Water Clear
Luminous Intensity: 180mcd
Forward Current: 20mA
Forward Voltage: 1.7V
Maximum Voltage: 2.4V
Pulsed Forward Current: 100mA
Beam Angle: 130°
Package: 1206
Mounting: SMD
Operating Temperature: -40°C to 85°C
Storage Temperature: -40°C to 90°C
Thickness: 1mm
