19-213-GPC-R7L2N1L0E-3T-AM

$0.50
Tax excluded

Description

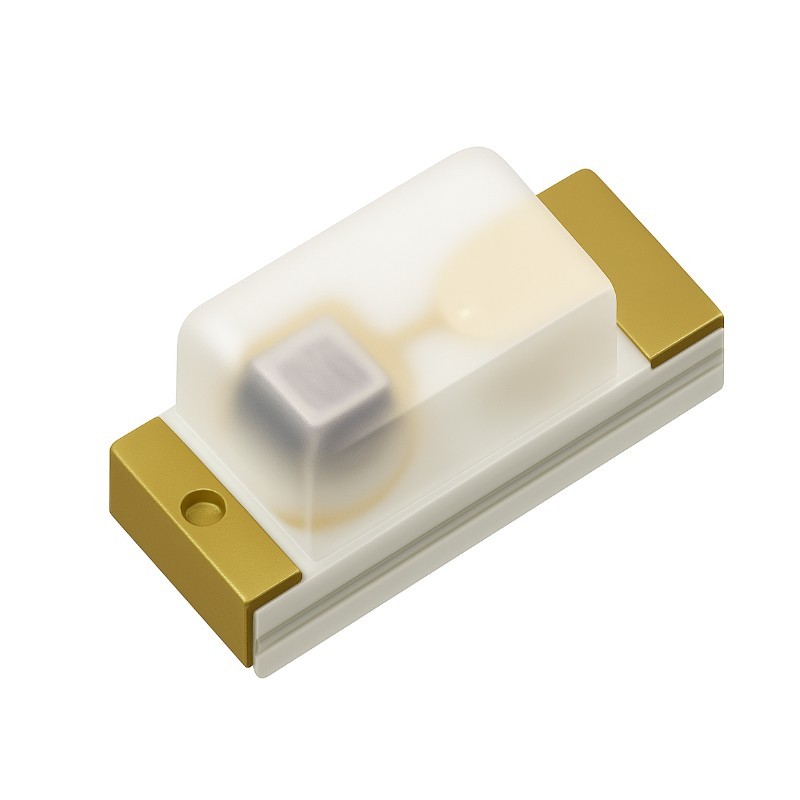

SMD LED's; Top-View; 1608 (0603); Green.

Features

  • RoHS compliant
  • Chip LED package.
  • Colorless clear resin.
  • Wide viewing angle 120°
  • Brightness: 14.0 to35.5 mcd at 20mA.
  • Qualification according to AEC-Q101.
  • Precondition: Bases on JEDEC J-STD 020 Level 3.
  • Automotive reflow profile (IR reflow or wave soldering)
  • Compliance with EU REACH
  • Compliance Halogen Free .(Br <900 ppm ,Cl <900 ppm , Br+Cl < 1500 ppm).

Applications

  • Automotive Backlighting Or Indicator: Dashboard, Switch, Audio And Video Equipments…Etc.
  • Backlight: Lcd, Switches, Symbol, Mobile Phone And Illuminated Advertising.
  • Display For Indoor And Outdoor Application.
  • Ideal For Coupling Into Light Guides.
  • Substitution Of Traditional...
19-213-GPC-R7L2N1L0E-3T-AM
Color
Pale Green
Pale Green; Lens Color
Lens Color
Water Clear
Luminous Intensity
14mcd
Forward Current
20mA
Forward Voltage
2.3V
Maximum Voltage
2.3V
Pulsed Forward Current
60mA
Beam Angle
120°
Package
603
Mounting
SMD
Operating Temperature
-40°C to 85°C
Storage Temperature
-40°C to 90°C
Thickness
0.6mm
