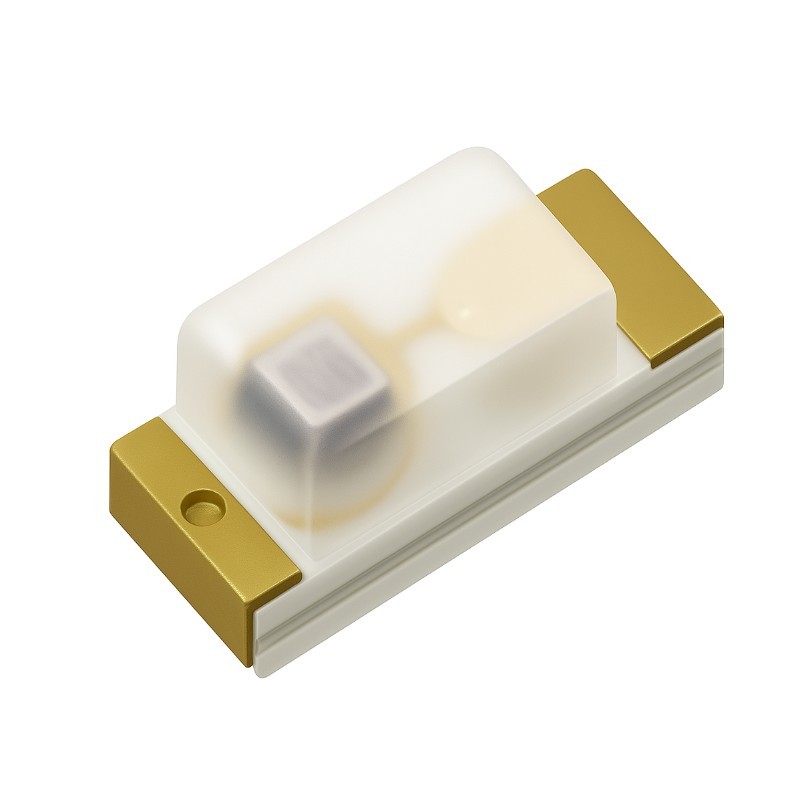

19-113-BHC-A0P1Q1K0E-3T-AM

$0.50
Tax excluded

Features

  • RoHS compliant
  • Chip LED package.
  • Colorless clear resin.
  • Wide viewing angle 120°
  • Brightness:45 to 90 mcd at 20 mA.
  • Qualification according to AEC-Q101.
  • Precondition: Bases on JEDEC J-STD 020 Level 3.
  • Automotive reflow profile (IR reflow or wave soldering)

Applications

  • Automotive Backlighting Or Indicator: Dashboard, Switch, Audio And Video Equipments…Etc.
  • Backlight: Lcd, Switches, Symbol, Mobile Phone And Illuminated Advertising.
  • Display For Indoor And Outdoor Application.
  • Ideal For Coupling Into Light Guides.
  • Substitution Of Traditional Light.
  • Optical Indicator.
  • General Applications.
19-113-BHC-A0P1Q1K0E-3T-AM
Color
Blue
Blue; Lens Color
Lens Color
Water Clear
Luminous Intensity
45mcd
Forward Current
20mA
Forward Voltage
3.3V
Maximum Voltage
3.3V
Pulsed Forward Current
100mA
Beam Angle
120°
Package
603
Mounting
SMD
Operating Temperature
-40°C to 85°C
Storage Temperature
-40°C to 90°C
