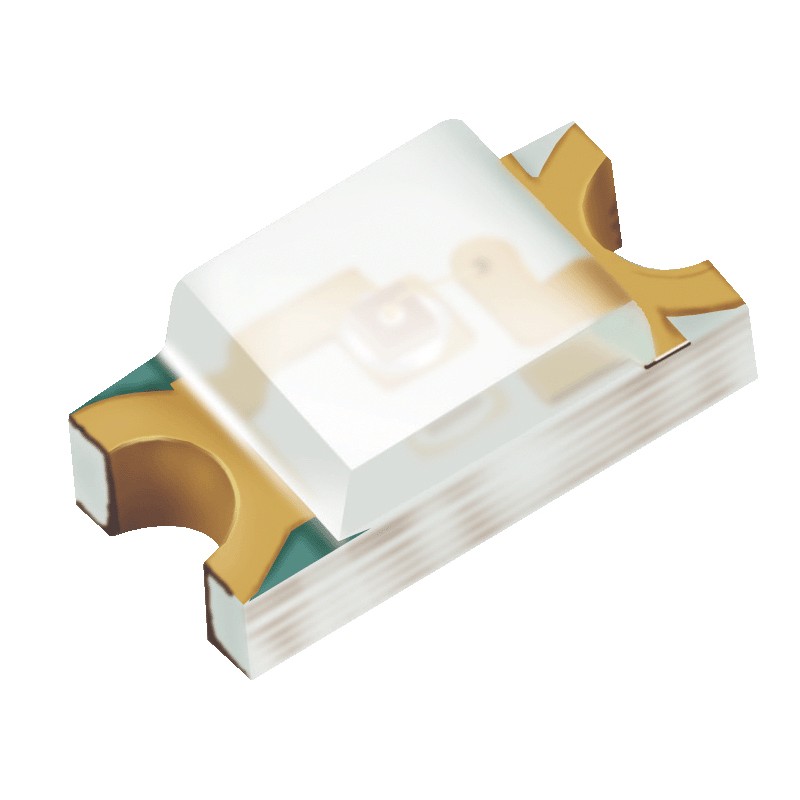

15-21-R7C-A0P2R1L0E-2T-AM

$0.06
Tax excluded

Description

The SMD LED is much smaller than lead frame type components; thus enable smaller board size; higher packing density; reduced storage space and finally smaller equipment to be obtained. Besides; lightweight makes them ideal for miniature applications. etc.

Features

  • RoHS compliant
  • Chip LED package.
  • Colorless clear resin.
  • Wide viewing angle 130°
  • Brightness:56 to 140 mcd at 20mA.
  • Qualification according to AEC-Q101.
  • Precondition: Bases on JEDEC J-STD 020 Level 3.
  • Automotive reflow profile (IR reflow or wave soldering)
  • Compliance with EU REACH
  • Compliance Halogen Free .(Br <900 ppm ,Cl <900 ppm , Br+Cl < 1500 ppm).

Applications

  • Automotive Backlighting Or Indicator: Dashboard, Switch, Audio And Video Equipments…Etc.
  • ...
15-21-R7C-A0P2R1L0E-2T-AM
Color
Dark Red
Dark Red; Luminous Intensity
Luminous Intensity
56mcd
Forward Current
20mA
Maximum Voltage
2.3V
Beam Angle
130°
Package
1206
