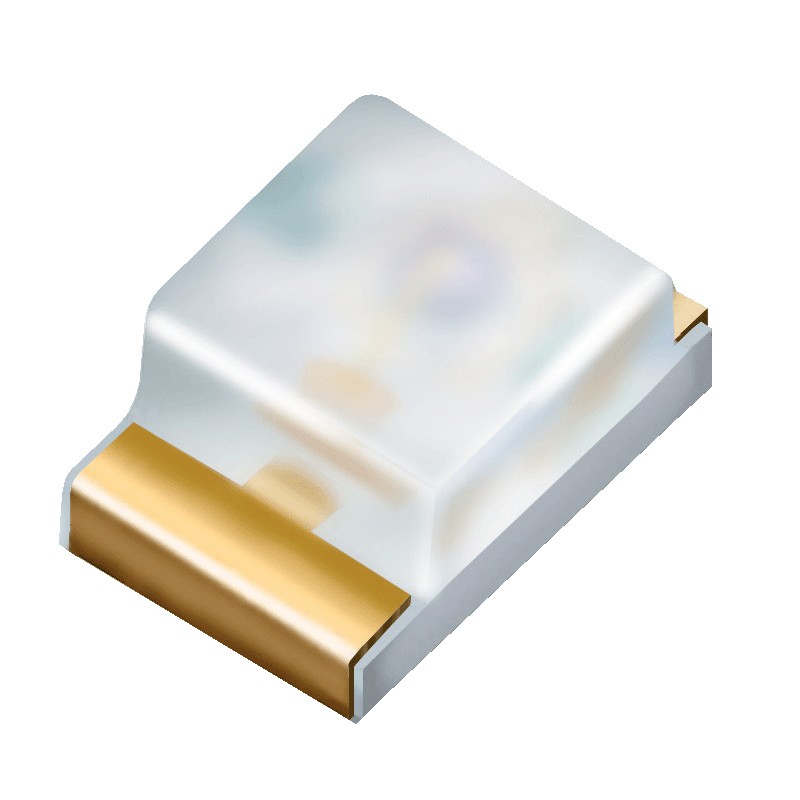

17-215-Y2C-P9Q2S1B0E-3T-AM

$0.35
Tax excluded

Description

The 17-215 SMD LED is much smaller than lead frame type components; thus enable smaller board ize; higher packing density; reduced storage space and finally smaller equipment to be obtained. Besides; lightweight makes them ideal for miniature applications. etc.

Features

  • RoHS compliant
  • Chip LED package.
  • Colorless clear resin.
  • Wide viewing angle 130°.
  • Brightness: 90 to 224 mcd at 20mA.
  • Qualification according to AEC-Q101.
  • Precondition: Bases on JEDEC J-STD 020 Level 3.
  • Automotive reflow profile (IR reflow or wave soldering)

Applications

  • Automotive Backlighting Or Indicator: Dashboard, Switch, Audio And Video Equipments…Etc.
  • Backlight: Lcd, Switches, Symbol, Mobile Phone And Illuminated Advertising.
  • Display For Indoor And...
17-215-Y2C-P9Q2S1B0E-3T-AM
Color
Yellow
Yellow; Luminous Intensity
Luminous Intensity
90mcd
Forward Current
20mA
Maximum Voltage
2.35V
Beam Angle
130°
Package
805
