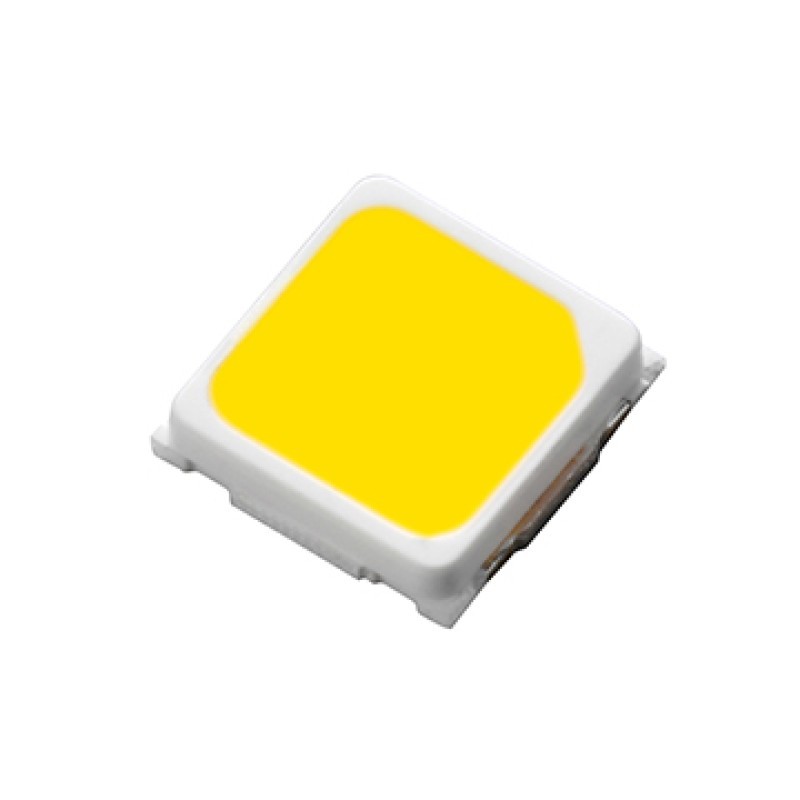

XI3030-C01501M-53B56DF4F62732-2T-AM

$0.45
Tax excluded

Features

  • Package：SMD EMC package
  • Color Temperature range：5180 K ~ 5850 K
  • Typical Luminous Flux：50 lm @ 150mA
  • Viewing angle：120 o
  • ESD : up to 8KV
  • MSL : 2
  • Qualifications : According to AEC-Q102(Exterior)
  • Sulfur robustness: B0
  • Compliance with RoHS and REACH
  • Compliance Halogen Free. (Br <900 ppm ,Cl <900 ppm , Br+Cl < 1500 ppm).

Applications

  • Automotive Exterior Lighting
  • Day Time Running Light(Drl)
XI3030-C01501M-53B56DF4F62732-2T-AM
Color
White
Forward Current
150mA
Maximum Voltage
3.25V
Beam Angle
120°
Package
3030
