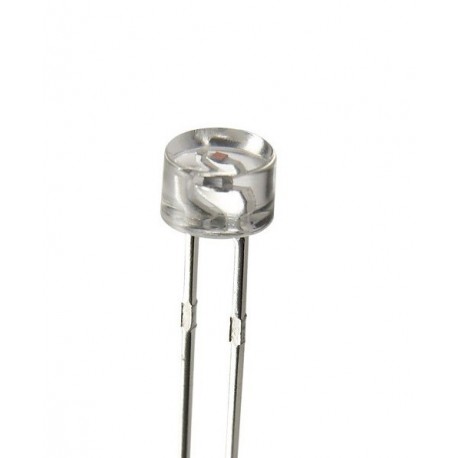

EAALSIC05RDMA1 View larger

Part Number: EAALSIC05RDMA1


Analog Sensor - Thu-Hole

More details

In Stock

63 Parts

    Description:

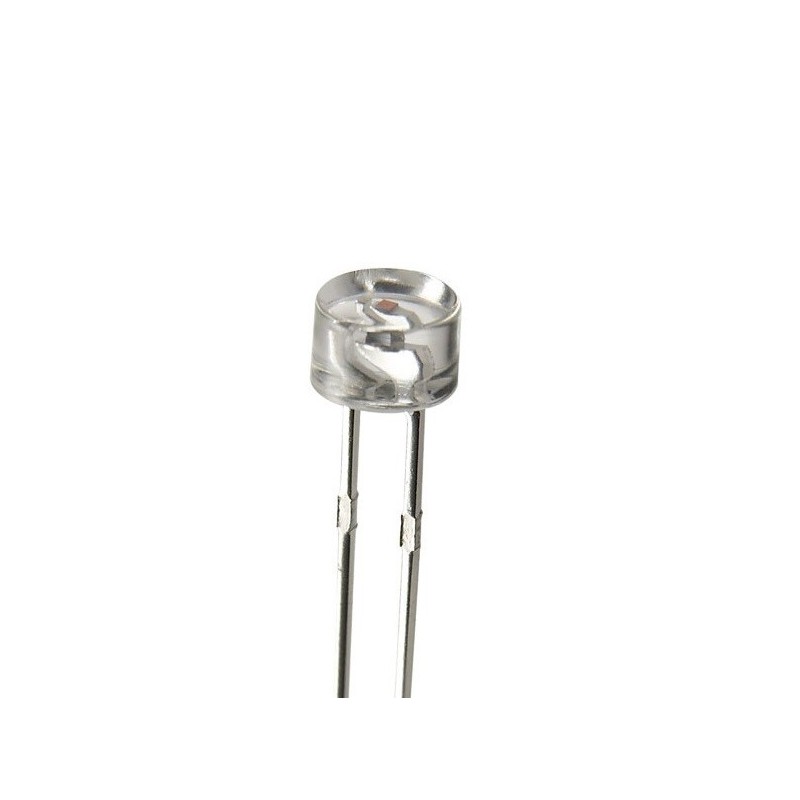

    The EAALSIC05RDMA1 is an ambient light sensor, which incorporates a photodiode and a current amplifier IC in DIP
    package. Everlight Americas ALS series products are a good effective solution to the power saving of display
    backlighting of mobile appliances, such as the mobile phones, NB and PDAs. Due to the high rejection ratio of
    infrared radiation, the spectral response of the ambient light sensor is close to human eyes. Also, it is very suitable to
    use ALS product for opto-switch application.

    Features:
    Excellent IR-Cut performance
    Close responsively to the human eye spectrum
    Light to Current, analog output
    Good output linearity across wide illumination range
    Low sensitivity variation across various light sources
    Operation temperature performance, -40oC to 85oC
    Wide supply voltage range, 1.8V to 5.5V
    Size: 5mm Lamp (Flat lens)
    RoHS compliant package
    Compliance with EU REACH.

    Applications:
    Ambient light monitoring device for daylight and artificial light
    CCD camera/CCTV security equipment, Street light
    Detection of ambient light to control display backlighting
    Computing device – TFT LCD monitor for Notebook computer
    Consumer device – TFT LCD TV, video camera, digital camera, toys

    Package5mm Round
    MountingThrough Hole
    TypeAnalog
    Width5mm
    Min. Dominant Wavelength390nm
    Max. Dominant Wavelength700nm
    Peak Wavelength630nm
    Max. Dark Current / Count100nA
    Min. Supply Voltage2.5V
    Max. Supply Voltage5.5V
    Min. Operating Temp.-40C
    Max. Operating Temp.85C
    PackagingBag
    Min. Storage Temp.-40C
    Max. Storage Temp.100C
