EAALSTIC2012A0
$2.00
Tax excluded
Description

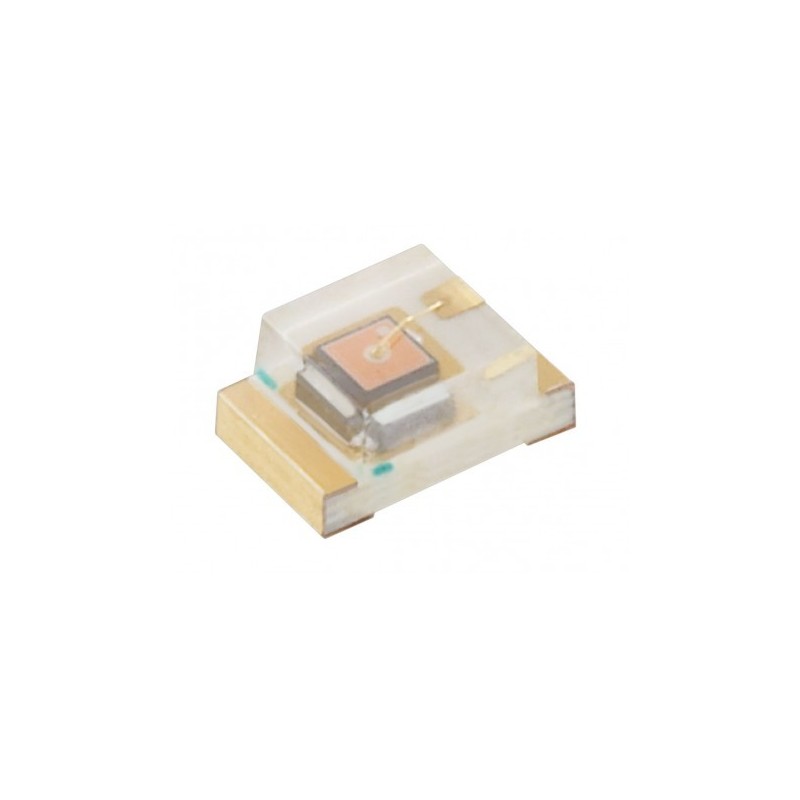

The ALS-PT17-51C/L177/TR8 is a low cost ambient light sensor, consisting of phototransistor in miniature SMD. EVERLIGHT ALS series product are a good effective solution to the power saving of display backlighting of mobile appliances, such as the mobile phones, NB and PDAs. Due to the high rejection ratio of infrared radiation, the spectral response of the ambient light sensor is close to that of human eyes.
Features
- Close responsively to the human eye spectrum Light to Current, analog output Good output linearity across wide illumination range Low sensitivity variation across various light sources Guaranteed temperature performance, -40℃to 85℃ Wide supply voltage range, 2.5V to 5.5V Size : 2.0mm(L)*1.25mm(W)*0.8mm(H) RoHS compliant and Pb Free package Compliance with EU REACH.
Applications
- Detecti...
EAALSTIC2012A0
27 Items
- Package
- 805
- Mounting
- SMD
- Thickness
- 0.6mm
- Maximum Voltage
- 6.0V
- Operating Temperature
- -40°C to 85°C
- Storage Temperature
- -40°C to 100°C
- Peak Wavelength
- 630nm
