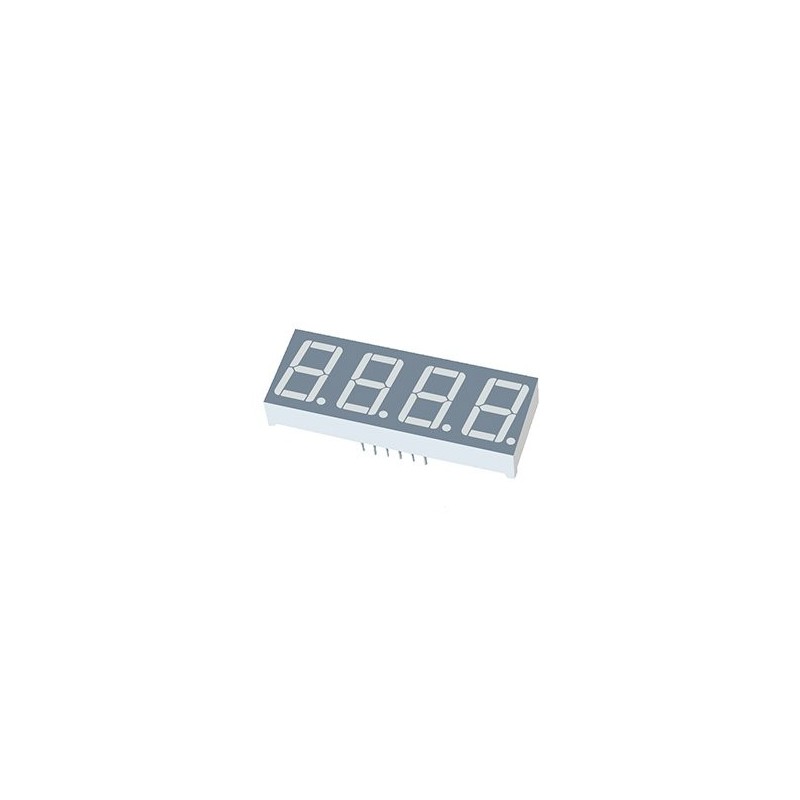

EADSF056GA2
$9.11
Tax excluded
Description
This part is a 14.22mm (0.56") digit height seven-segment display. The display provides excellent reliability in bright ambient light. The device is made with white segments and gray surface.
Features
- Industrial standard size. Packaged in tape and reel for SMT manufacturing. The thickness is thinness than tradition display. Low power consumption. Categorized for luminous intensity. Pb free and RoHS compliant.
Applications
- Home Appliances. Instrument Panels. Digital Readout Displays.
EADSF056GA2
20 Items
- Forward Current
- 10mA
- Package
- Rectangle
- Mounting
- SMD
- Thickness
- 3.75mm
- Forward Voltage
- 1.7V
- Pulsed Forward Current
- 60mA
- Operating Temperature
- -40°C to 105°C
- Storage Temperature
- -40°C to 105°C
- Peak Wavelength
- 573nm
- Number of Pins
- 12Pins
