EADCD054OA0
$1.59
Tax excluded
Description

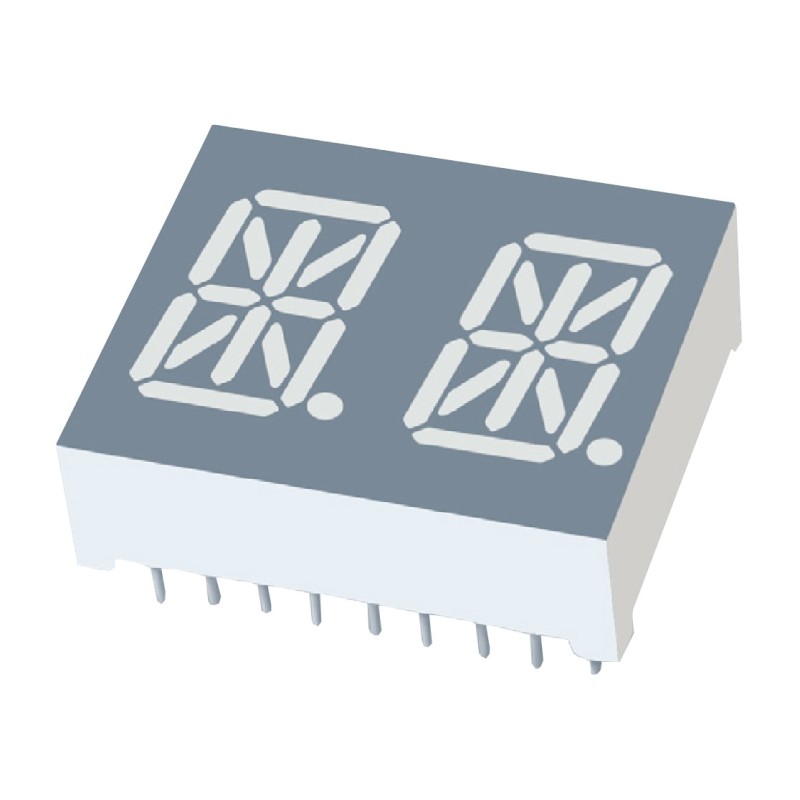

This part is a 13.6mm (0.54”) digit height alphanumeric display. The display provides excellent reliability in bright ambient light. The device is made with white segments and gray surface.
Features
- Industrial standard size. Low power consumption. Categorized for luminous intensity. Pb free and RoHS compliant.
Applications
- Home Appliances Instrument Panels Digital Readout Displays
EADCD054OA0
19 Items
- Color
- 615nm
- Package
- Rectangle
- Mounting
- Through Hole
- Thickness
- 7.7mm
- Forward Current
- 10mA
- Forward Voltage
- 1.7V
- Pulsed Forward Current
- 60mA
- Operating Temperature
- -40°C to 85°C
- Storage Temperature
- -40°C to 100°C
- Number of Pins
- 18Pins
