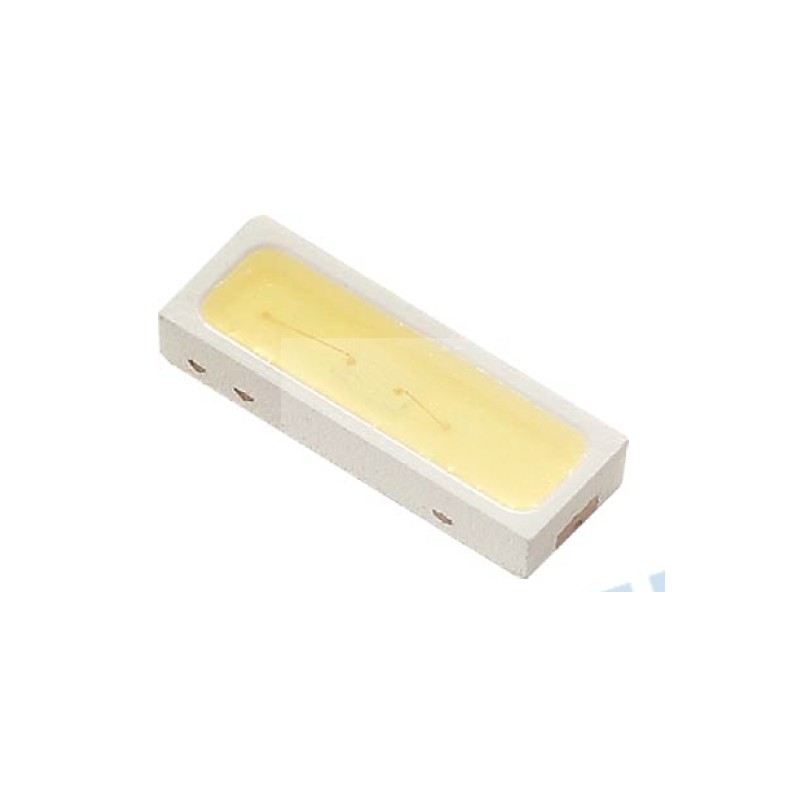

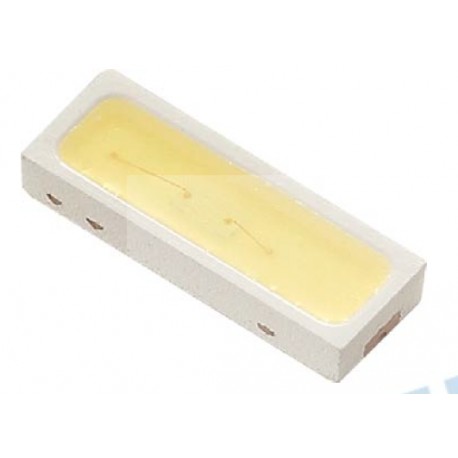

Part Number: EAPL4014WA1
White
White Lighting LED
On Backorder
Description
Due to the package design, this part has wide viewing angle, low power consumption and white LEDs are devices
which are materialized by combing blue chips and special phosphor. This feature makes the LED ideal for light guide
application
Features
Top View White LEDs
Wide viewing angle
Soldering methods: IR reflow soldering
Pb-free
ESD protection
The product itself ‧ will remain within RoHS compliant version.
Applications
Backlight for LCD Monitor/TV
Light pipe application
Indicator and backlight in office and family equipment
General use
| Packaging | Tape & Reel |
| Package | 4014 |
| Test Current | 120mA |
| Mounting | SMD |
| Min. Storage Temp. | -40C |
| Min. Operating Temp. | -40C |
| Min. Forward Voltage | 2.9V |
| Width | 1.4mm |
| Viewing Angle | 120 deg. |
| Type | Low-Mid Power |
| Min. Flux | 34lm |
| Thickness | 0.6mm |
| Max. Forward current | 120mA |
| Max. Flux | 44lm |
| Length | 4mm |
| Max. Forward Voltage | 3.4V |
| CCT | White |
| Max. Storage Temp. | 100C |
| Max. Pulsed Current | 240mA |
| Max. Operating Temp. | 100C |
