Part Number: ELUA4545OG3-P3040U23241500-VD1M

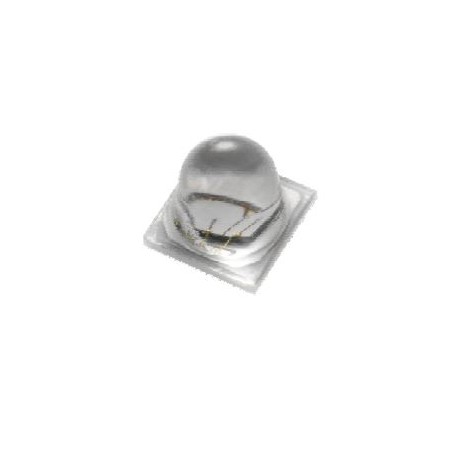

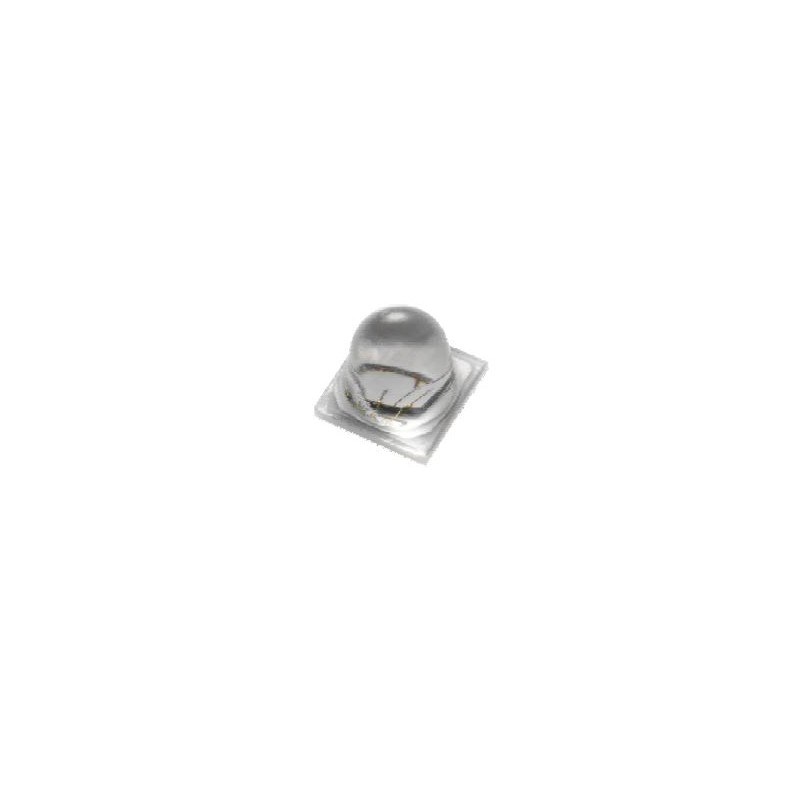

UV LED - UVA Range - 4545
On Backorder
Description
This product series is a ceramic based LED with high quality and reliability that suitable for UV application.
Features
High power UVA LED
Dimension 4.5mm* 4.5mm* 4.5mm
ESD protection up to 8KV
RoHS compliant
Pb free
EU REACH compliant
Halogen Free compliant
(Br<900ppm,Cl<900ppm,Br+Cl<1500ppm)
Applications
UV Sterilization System
UV Photo-catalyst
UV Sensor Light
| Peak Wavelength | 440nm |
| Package | 4545 |
| Orientation | Top View |
| Test Current | 500mA |
| Mounting | SMD |
| Min. Storage Temp. | -40C |
| Min. Radiant Intensity | 1000mW/sr |
| Min. Operating Temp. | -40C |
| Min. Forward Voltage | 3.2V |
| Width | 4.5mm |
| Viewing Angle | 30 deg. |
| Height | 4.57mm |
| Max. Forward current | 700mA |
| Length | 4.5mm |
| Max. Forward Voltage | 4.1V |
| Max. Storage Temp. | 85C |
| Max. Operating Temp. | 85C |
