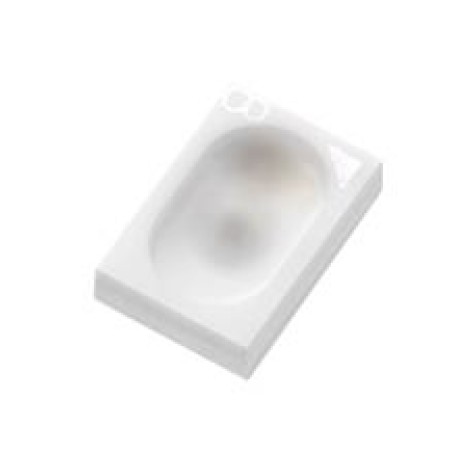

EAUVA3020BC4 View larger

Part Number: EAUVA3020EF5


UV LED - UVA Range - 3020

More details

In Stock

5 Parts

    Description
    This product series is a ceramic based LED with high quality and reliability that suitable for UV application.

    Features
    Low power UVA LED.
    Dimension 3.0mm*2.0mm*0.65mm.
    ESD protection.
    RoHS compliant.
    Pb free.
    EU REACH compliant.
    Halogen Free compliant.

    Applications
    UV Sterilization System.
    UV Photo-catalyst.
    UV Sensor Light.

    Package3020
    OrientationTop View
    MountingSMD
    Length3mm
    Width2mm
    Thickness0.65mm
    Peak Wavelength380/390nm
    Viewing Angle120 deg.
    Test Current20mA
    Max. Forward current30mA
    Min. Forward Voltage3V
    Max. Forward Voltage4V
    Min. Radiant Intensity25mW/sr
    Max. Power Dissipation0.08W
    Min. Operating Temp.-40C
    Max. Operating Temp.85C
    Min. Storage Temp.-40C
    Max. Storage Temp.85C
