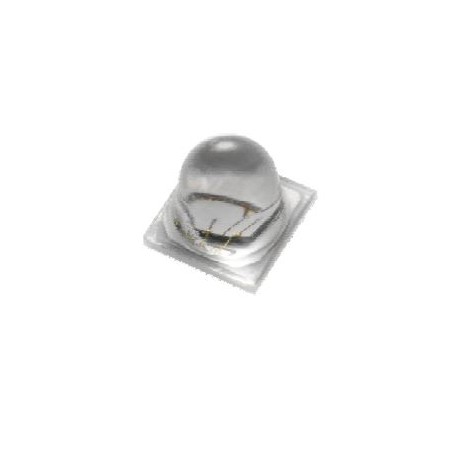

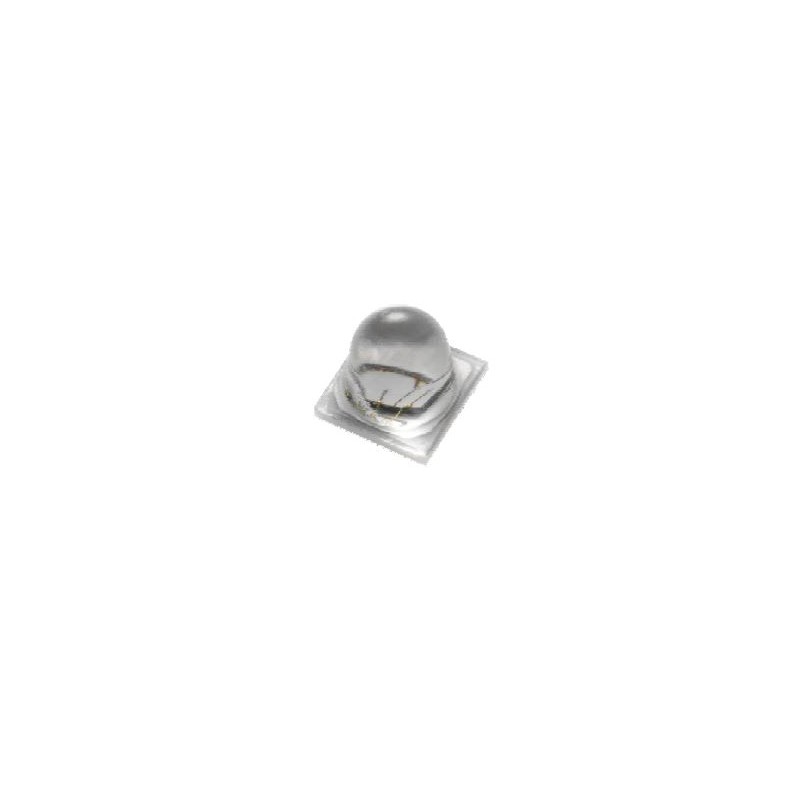

Part Number: EAUVA35353EF8
UV LED - UVA Range - 3535
Description
The EAUVA35353 Series product series is a ceramic based LED with high quality and reliability that suitable for UV application.
Features
High power UVA LED
Dimension 3.5mm* 3.5mm* 3.5mm
ESD protection up to 8KV
RoHS compliant
Applications
UV Sterilization System
UV Photo-catalyst
UV Sensor Light
| Package | 3535 |
| Orientation | Top View |
| Mounting | SMD |
| Length | 3.5mm |
| Width | 3.5mm |
| Thickness | 3.5mm |
| Peak Wavelength | 385nm |
| Viewing Angle | 50 deg. |
| Test Current | 500mA |
| Max. Forward current | 700mA |
| Min. Forward Voltage | 3V |
| Max. Forward Voltage | 4V |
| Min. Radiant Intensity | 1000mW |
| Min. Operating Temp. | -40C |
| Max. Operating Temp. | 110C |
| Min. Storage Temp. | -40C |
| Max. Storage Temp. | 110C |
