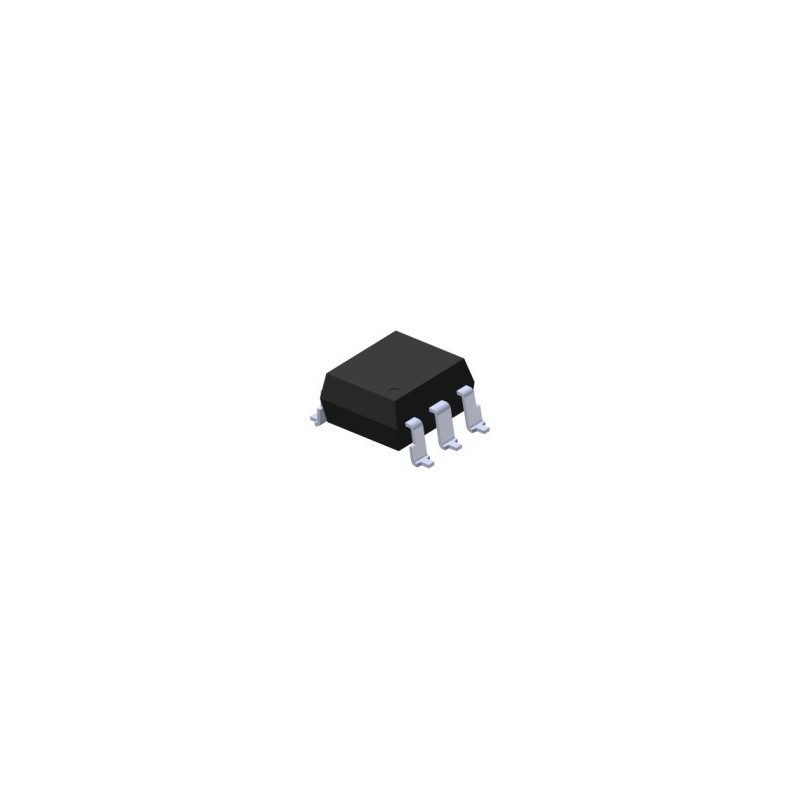

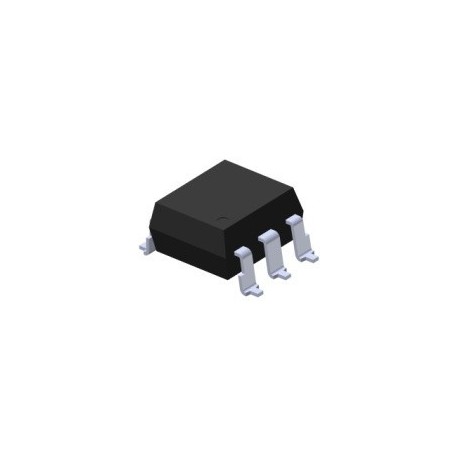

The EL301X, EL302X and EL305X series of devices each consist of a GaAs infrared emitting diode optically
coupled to a monolithic silicon random phase photo Triac.
They are designed for interfacing between electronic controls and power triacs to control resistive and inductive
loads for 115 to 240 VAC operations.
Peak breakdown voltage
High isolation voltage between input and output (Viso=5000 V rms )
Compact dual-in-line package
Pb free and RoHS compliant.
UL approved (No. E214129)
VDE approved (No.132249)
Static AC power switch
Interfacing microprocessors to 115 to 240Vac peripherals
Incandescent lamp dimmers
|Number of Pins||6Pins|
|Number of Channels||Single|
|Max. Forward Voltage||60V|
|Min. Isolation Voltage||5000V|
|Max. Peak Blocking Voltage VDRM||400V|
|Max. Peak On-State Current IFT||5mA|
|Max. Power Dissipation||300mW|
|Min. Operating Temp.||-55C|
|Max. Operating Temp.||100C|
|Packaging||Tape & Reel|
|Min. Storage Temp.||-55C|
|Max. Storage Temp.||125C|
