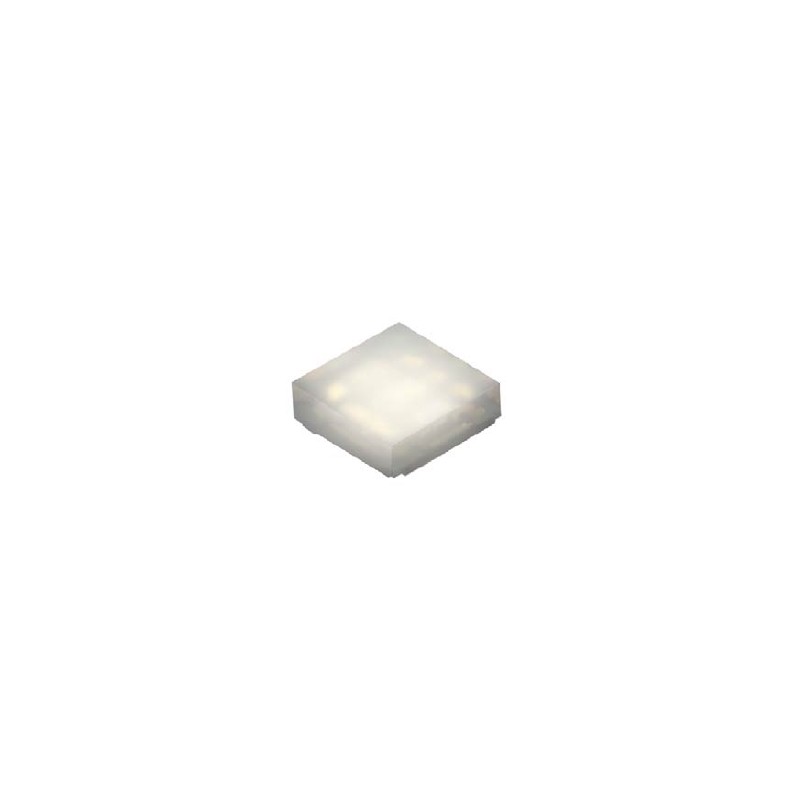

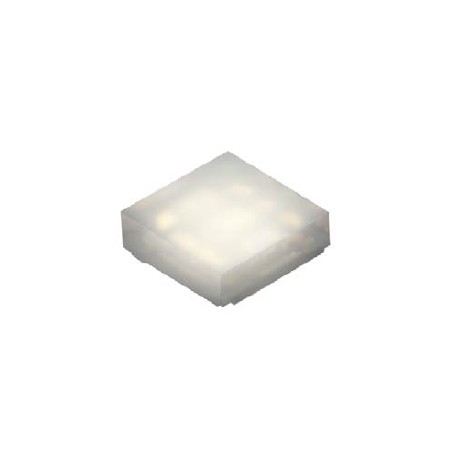

Part Number: B1818IC/RSGHBHC-5V01/2T

Description
This SMD LED is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained. Besides, lightweight makes them ideal for miniature applications. etc. 3-channels LED driver with 8 bit PWM linear control.

Features

Package in 8mm tape on 7〞diameter reel.

Compatible with automatic placement equipment.

Compatible with infrared and vapor phase reflow solder process.

Support signal reshaping to pass control waveforms to next adjacent driver ․

Cascading port transmission by dual-wire (clock and data) lines

Built-in current regulator, three-way drive.

256-step gray-scale output to allow 16,777,216 color display. ․

Support 8192-level GAMMA 2.8 resolution

13-bit PWM for each of RGB outputs

32-step dimming control.

Maximum serial input data/clock frequency 15MHz.

Pb-free.

The product itself will remain within RoHS compliant version.

Compliance with EU REACH.

Compliance Halogen Free .(Br Telecommunication: indicator and backlighting in telephone and fax.

Applications

Indoor/Outdoor LED video display.

Full color LED light strip.

LED decorative lighting.

Backlighting in dashboard and switch.
