> Products>LED Lamps>Through Hole LED Lamps>313-2SUGD/S400-X6
New 313-2SUGD/S400-X6 View larger

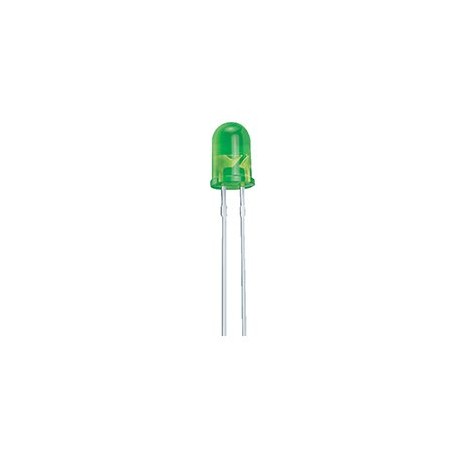

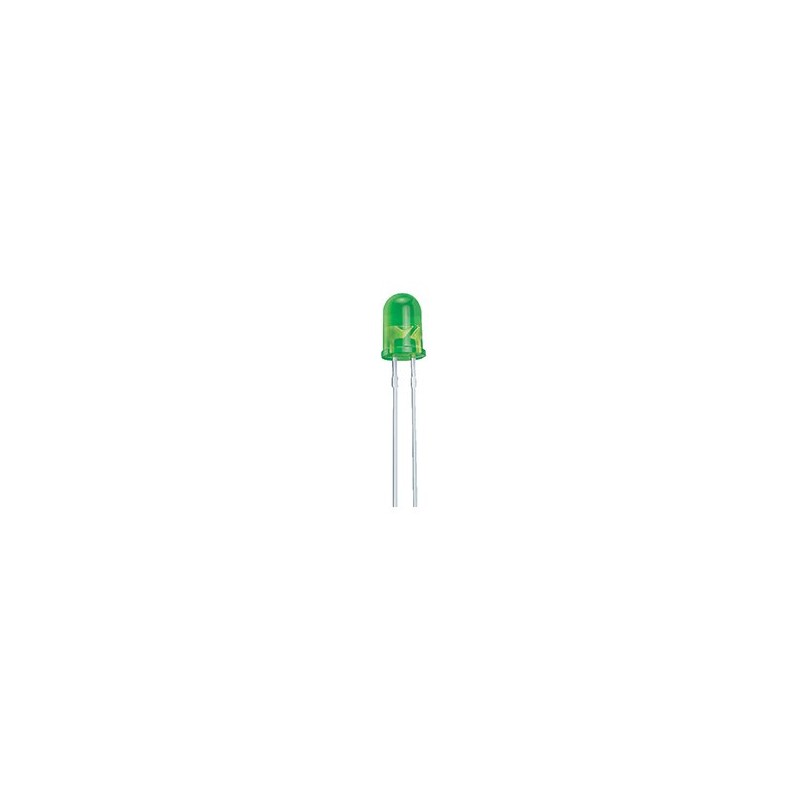

Part Number: 313-2SUGD/S400-X6


White

Thru-Hole LED, Round, 5mm (T1 3/4), Green

More details

In Stock

300 Parts

    Description:
    The series is specially designed for applications requiring higher brightness
    The led lamps are available with different colors, intensities.

    Features:
    Choice of various viewing angles
    Available on tape and reel.
    Reliable and robust
    The product itself will remain within RoHS compliant version.
    Compliance with EU REACH
    Compliance Halogen free. (Br <900 ppm, Cl<900 ppm, Br+Cl <1500 ppm).

    Applications:
    TV set
    Monitor
    Telephone
    Computer

    PackagingBag
    Package5mm Round
    Off State Lens ColorGreen Diffused
    MountingThrough Hole
    Min. Storage Temp.-40C
    Min. Operating Temp.-40C
    Min. Forward Voltage2.7V
    Min. Flux1600mcd
    Typ. Flux3200mcd
    Typ. Dominant Wavelength525nm
    Max. Forward Voltage3.7V
    Display Emitted ColorBrilliant Green
    ColorsGreen
    Max. Storage Temp.100C
    Max. Operating Temp.85C
