New MV6461A/QT264-6SRGW View larger

Part Number: MV6461A/QT264-6SRGW


Deep RedYellow Green

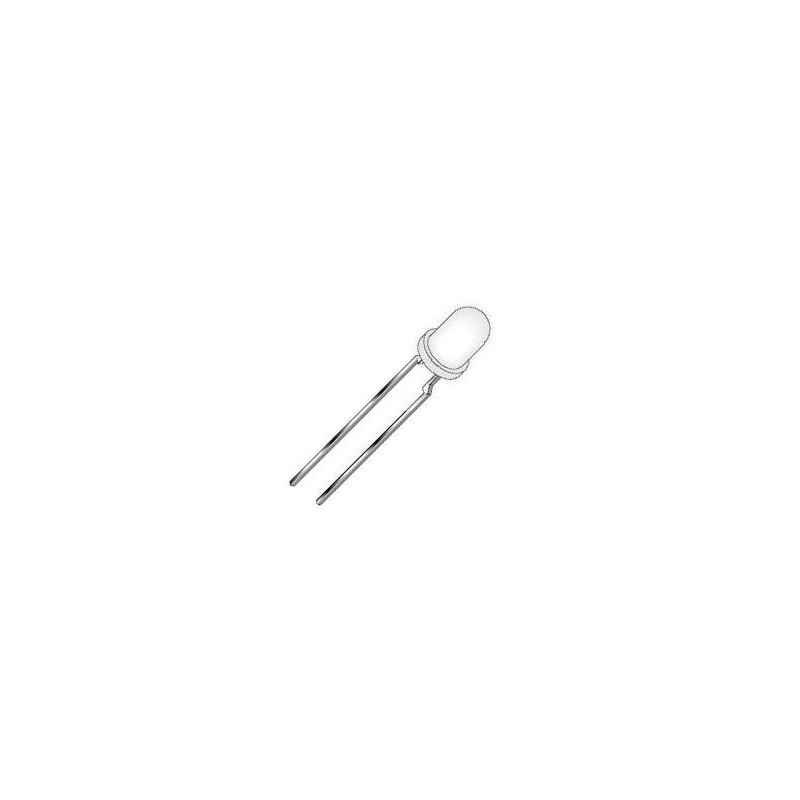

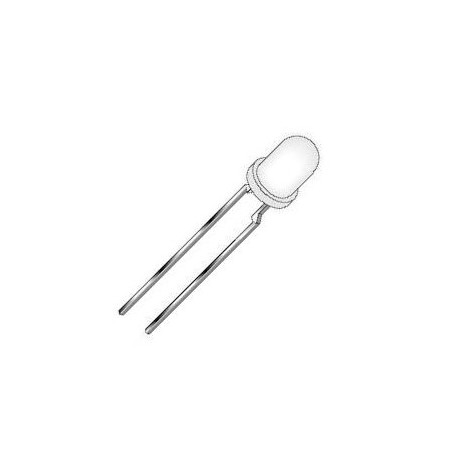

Thru-Hole LED, Round, 5mm, White

More details

In Stock

150 Parts

    Descriptions:

    • The 264-6 lamps are made with AIGaInP or AiGaInP Deep-red and Brilliant Yellow Green.
    • Automatically insertable with radial lead insertion equipment.

    Features

    • Choice of various viewing angles
    • Available on tape and reel.
    • Reliable and robust
    • The product itself will remain within RoHS compliant version.
    • Compliance with EU REACH
    • Compliance Halogen Free .(Br <900 ppm ,Cl <900 ppm , Br+Cl < 1500 ppm)


    Applications:

    • TV Set
    • Monitor
    • Telephone
    • Computer
    Peak Wavelength660/575
    PackagingTape & Reel
    Package5mm Round
    Off State Lens ColorWhite Diffused
    MountingThrough Hole
    Min. Storage Temp.-55C
    Min. Operating Temp.-55C
    Typ. Forward Voltage2V
    Viewing Angle35 deg.
    Typ. Dominant Wavelength650/573
    Max. Forward current30mA
    Max. Forward Voltage2.4V
    Max. Storage Temp.100C
    Max. Operating Temp.100C
