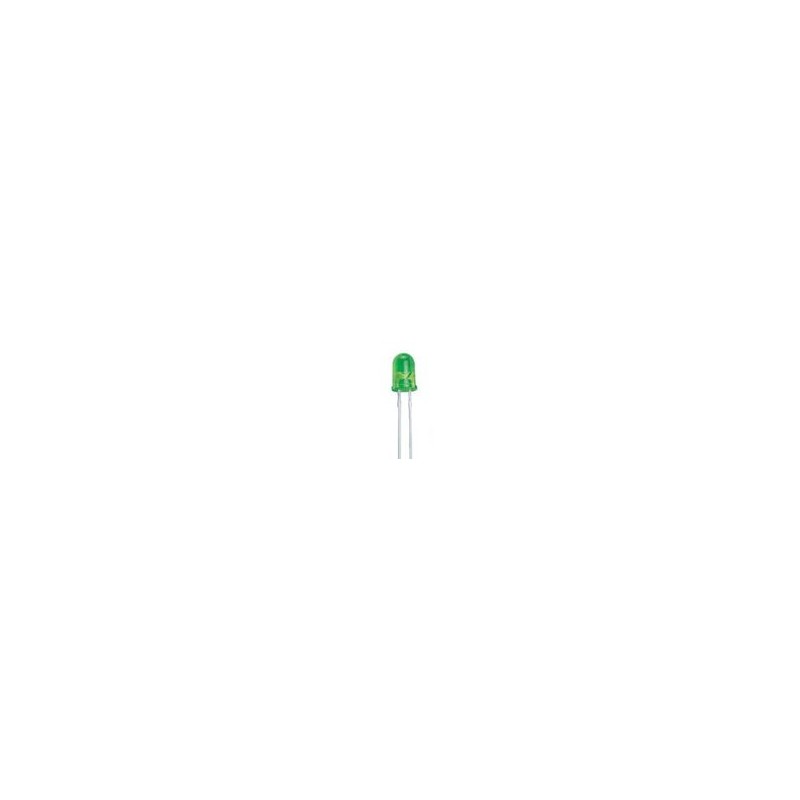

MV5474C/QT2235GD View larger

Part Number: MV5474C/QT2235GD


Mid Green

Thru-Hole LED, Round, 5mm, Yellow

More details

In Stock

300 Parts

    Descriptions:
    The series is specially designed for applications requiring higher brightness.
    The LED lamps are available with different colors, intensities, etc.

    Features

    • Choice of various viewing angles
    • Available on tape and reel.
    • Reliable and robust
    • The product itself will remain within RoHS compliant version.
    • Compliance with EU REACH
    • Compliance Halogen Free .(Br <900 ppm ,Cl <900 ppm , Br+Cl < 1500 ppm)


    Applications:

    • TV Set
    • Monitor
    • Telephone
    • Computer
    Peak Wavelength570nm
    PackagingTape & Reel
    Package5mm Round
    Off State Lens ColorGreen Diffused
    Test Current20mA
    MountingThrough Hole
    Min. Storage Temp.-40C
    Min. Operating Temp.-40C
    Typ. Forward Voltage2V
    Viewing Angle35 deg.
    Min. Flux20mcd
    Typ. Dominant Wavelength565
    Max. Forward current25mA
    Max. Forward Voltage2.4V
    Max. Storage Temp.100C
    Max. Pulsed Current60mA
    Max. Operating Temp.85C
