> Products>LED Lamps>Through Hole LED Lamps>MV6353/QT333YD
New MV6353/QT333YD View larger

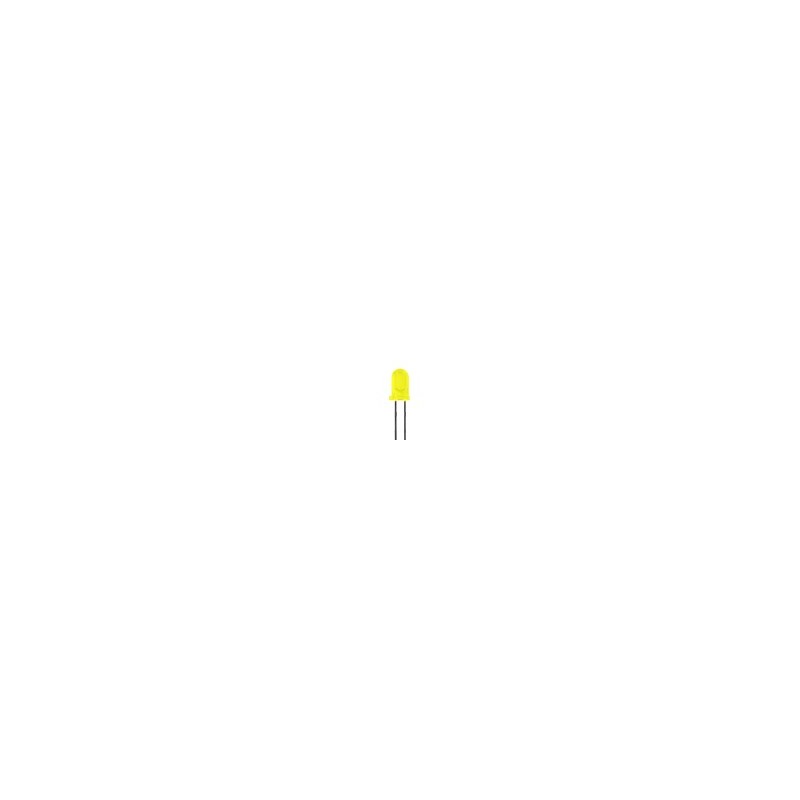

Part Number: MV6353/QT333YD


Yellow

Thru-Hole LED, Round, 5mm, Yellow

More details

In Stock

500 Parts

    Descriptions:
    The series is specially designed for applications requiring higher brightness.
    The LED lamps are available with different colors, intensities, etc.

    Features

    • Choice of various viewing angles
    • Available on tape and reel.
    • Reliable and robust
    • The product itself will remain within RoHS compliant version.
    • Compliance with EU REACH
    • Compliance Halogen Free .(Br <900 ppm ,Cl <900 ppm , Br+Cl < 1500 ppm)


    Applications:

    • TV Set
    • Monitor
    • Telephone
    • Computer
    Package5mm Round
    MountingThrough Hole
    Off State Lens ColorYellow Diffused
    Typ. Dominant Wavelength589nm
    Peak Wavelength591nm
    Viewing Angle35 deg.
    Min. Flux160mcd
    Typ. Flux320mcd
    Test Current20mA
    Max. Forward current25mA
    Typ. Forward Voltage2V
    Max. Forward Voltage2.4V
    Max. Pulsed Current60mA
    Min. Operating Temp.-40C
    Max. Operating Temp.85C
    PackagingTape & Reel
    Min. Storage Temp.-40C
    Max. Storage Temp.100C
