> Products>LED Lamps>Through Hole LED Lamps>EALP03RDKWA3

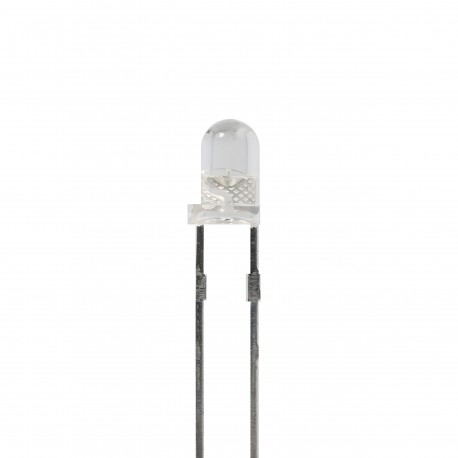

EALP03RDKWA3 View larger

Part Number: EALP03RDKWA3


White

Thru-Hole LED, Round, 3mm (T1), Green

More details

On Backorder

    Description:
    The series is specially designed for applications requiring higher brightness
    The led lamps are available with different colors, intensities.

    Features:
    Choice of various viewing angles
    Available on tape and reel.
    Reliable and robust
    The product itself will remain within RoHS compliant version.
    Compliance with EU REACH
    Compliance Halogen free. (Br <900 ppm, Cl<900 ppm, Br+Cl <1500 ppm).

    Applications:
    TV set
    Monitor
    Telephone
    Computer

    Peak WavelengthWhite
    PackagingBag
    Package3mm Round
    Off State Lens ColorWater Clear
    Test Current20mA
    MountingThrough Hole
    Min. Storage Temp.-40C
    Min. Operating Temp.-40C
    Min. Forward Voltage2.8V
    Viewing Angle60 deg.
    Min. Flux3600mcd
    Typ. Dominant WavelengthWhite
    Max. Forward current30mA
    Max. Flux7150mcd
    Max. Dominant WavelengthWhite
    Max. Forward Voltage3.6V
    Min. Dominant WavelengthWhite
    Max. Storage Temp.100C
    Max. Pulsed Current100mA
    Max. Operating Temp.85C
