Part Number: EALP03RDEYA1
Yellow

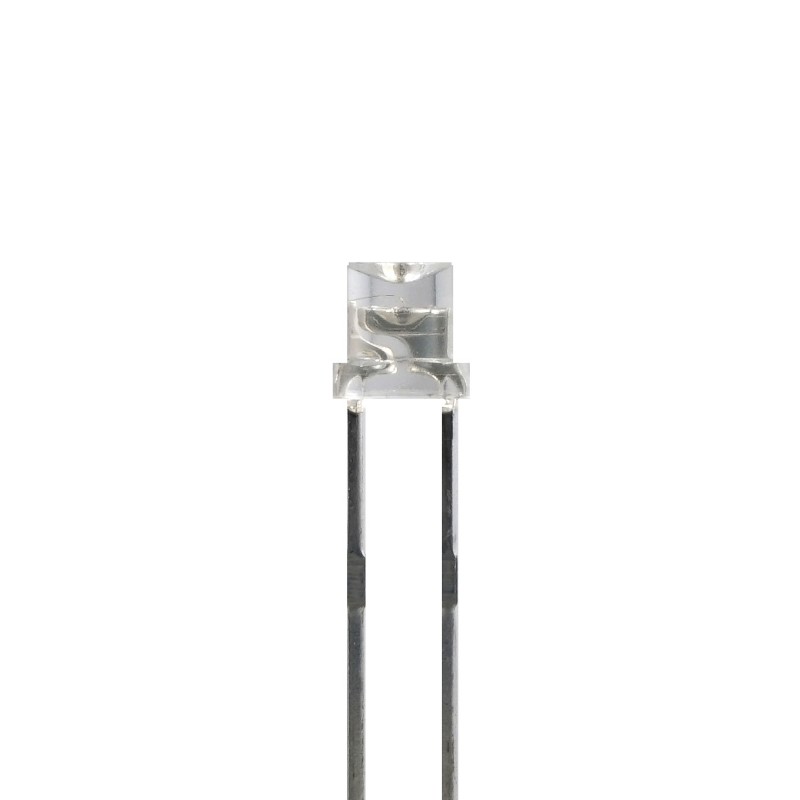

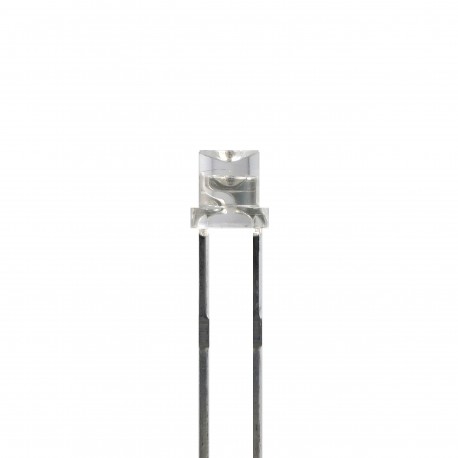

Thru-Hole LED, Round, 3mm (T1), Yellow
Description:
The series is designed for application required high luminous intensity.
The phosphor filled in the reflector converts the blue emission of InGaN chip to ideal white.
Features
Choice of various viewing angles
Available on tape and reel.
Reliable and robust
The product itself will remain within RoHS compliant version.
Compliance with EU REACH
Compliance Halogen Free .(Br <900 ppm ,Cl <900 ppm , Br+Cl < 1500 ppm)
Applications:
Message panels
Optical Indicators
Backlighting
Marker Lights
| Peak Wavelength | 591nm |
| Packaging | Bag |
| Package | 3mm Round Flat-Top |
| Off State Lens Color | Water Clear |
| Test Current | 20mA |
| Mounting | Through Hole |
| Min. Storage Temp. | -40C |
| Min. Operating Temp. | -40C |
| Min. Forward Voltage | 1.7V |
| Typ. Forward Voltage | 2V |
| Viewing Angle | 110 deg. |
| Min. Flux | 25mcd |
| Typ. Flux | 50mcd |
| Typ. Dominant Wavelength | 589nm |
| Max. Forward current | 25mA |
| Max. Forward Voltage | 2.4V |
| Max. Storage Temp. | 100C |
| Max. Pulsed Current | 60mA |
| Max. Operating Temp. | 85C |
