1254SURD/S530-A4/TR2-7(A) View larger

Part Number: 1254SURD/S530-A4/TR2-7(A)


Red

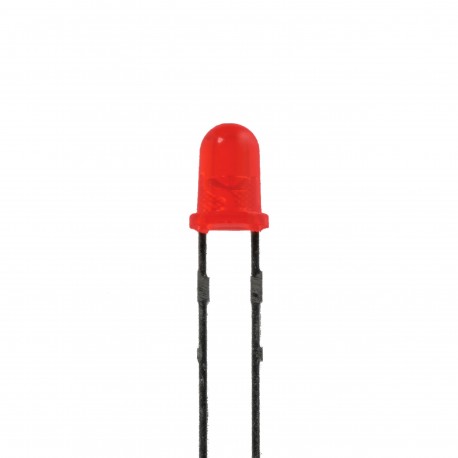

Thru-Hole LED, Round, 3mm (T1), Red

More details

In Stock

5029 Parts

    Description:
    The series is specially designed for applications requiring higher brightness
    The led lamps are available with different colors, intensities..

    Features:

    • Choice of various viewing angles
    • Available on tape and reel.
    • Reliable and robust
    • Pb free
    • The product itself will remain within RoHS compliant version.
    • Compliance with EU REACH
    • Compliance Halogen Free .(Br <900 ppm ,Cl <900 ppm , Br+Cl < 1500 ppm)


    Applications:

    • TV set
    • Monitor
    • Telephone
    • Computer
    PackagingBag
    Package3mm Round
    Off State Lens ColorRed Diffused
    Test Current20mA
    MountingThrough Hole
    Min. Storage Temp.-40C
    Min. Operating Temp.-40C
    Min. Forward Voltage1.7V
    Viewing Angle30 deg.
    Min. Flux400mcd
    Typ. Flux630mcd
    Typ. Dominant Wavelength624nm
    Max. Forward current25mA
    Max. Forward Voltage2.4V
    Max. Storage Temp.100C
    Max. Pulsed Current30mA
    Max. Operating Temp.85C
