> Products>LED Lamps>Through Hole LED Lamps>103SURD/S530-A3
103SURD/S530-A3 View larger

Part Number: 103SURD/S530-A3


Red

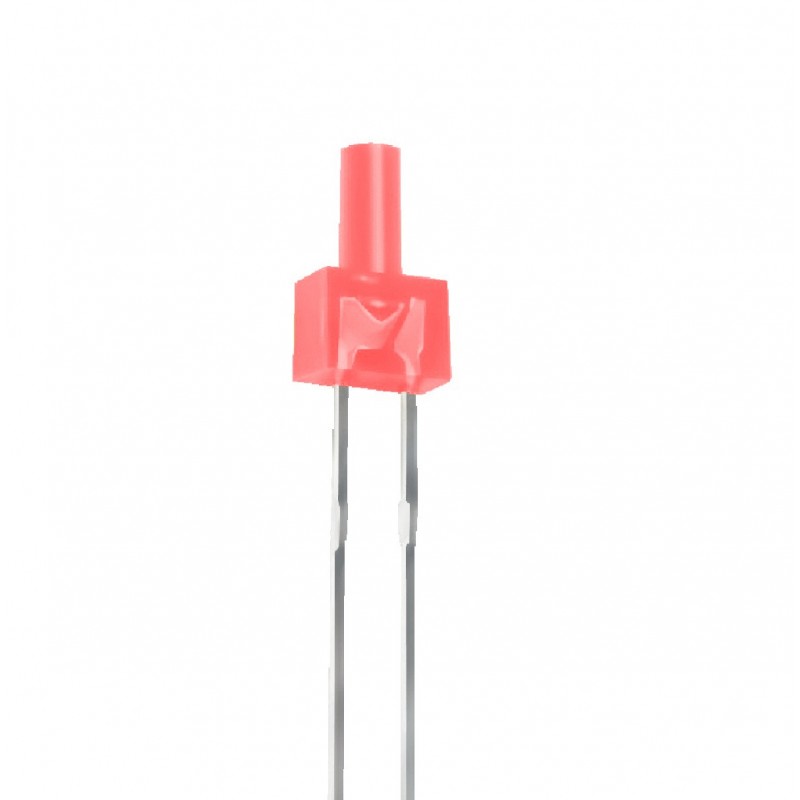

Thru-Hole LED, Rectangular, 2mm Tower, Red

More details

In Stock

240 Parts

    Description:
    The series is specially designed for applications requiring higher brightness
    The led lamps are available with different colors, intensities.

    Features:
    Choice of various viewing angles
    Available on tape and reel.
    Reliable and robust
    The product itself will remain within RoHS compliant version.
    Compliance with EU REACH
    Compliance Halogen free. (Br <900 ppm, Cl<900 ppm, Br+Cl <1500 ppm).

    Applications:
    TV set
    Monitor
    Telephone
    Computer

    PackagingBag
    PackageRectangle
    Off State Lens ColorRed Diffused
    Test Current20mA
    MountingThrough Hole
    Min. Storage Temp.-40C
    Min. Operating Temp.-40C
    Min. Forward Voltage1.7V
    Viewing Angle130 deg.
    Type2mm Round Lens
    Min. Flux25mcd
    Typ. Flux40mcd
    Typ. Dominant Wavelength624nm
    Max. Forward current25mA
    Max. Forward Voltage2.4V
    Max. Storage Temp.100C
    Max. Pulsed Current130mA
    Max. Operating Temp.85C
